44166 - MYRRA

Description: Transformer: encapsulated; 2.3VA; 230VAC; 15V; 15V; 77mA; 77mA; PCB

Download 44166 Model

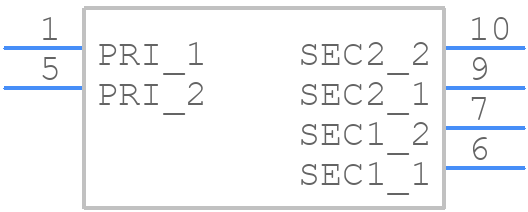

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

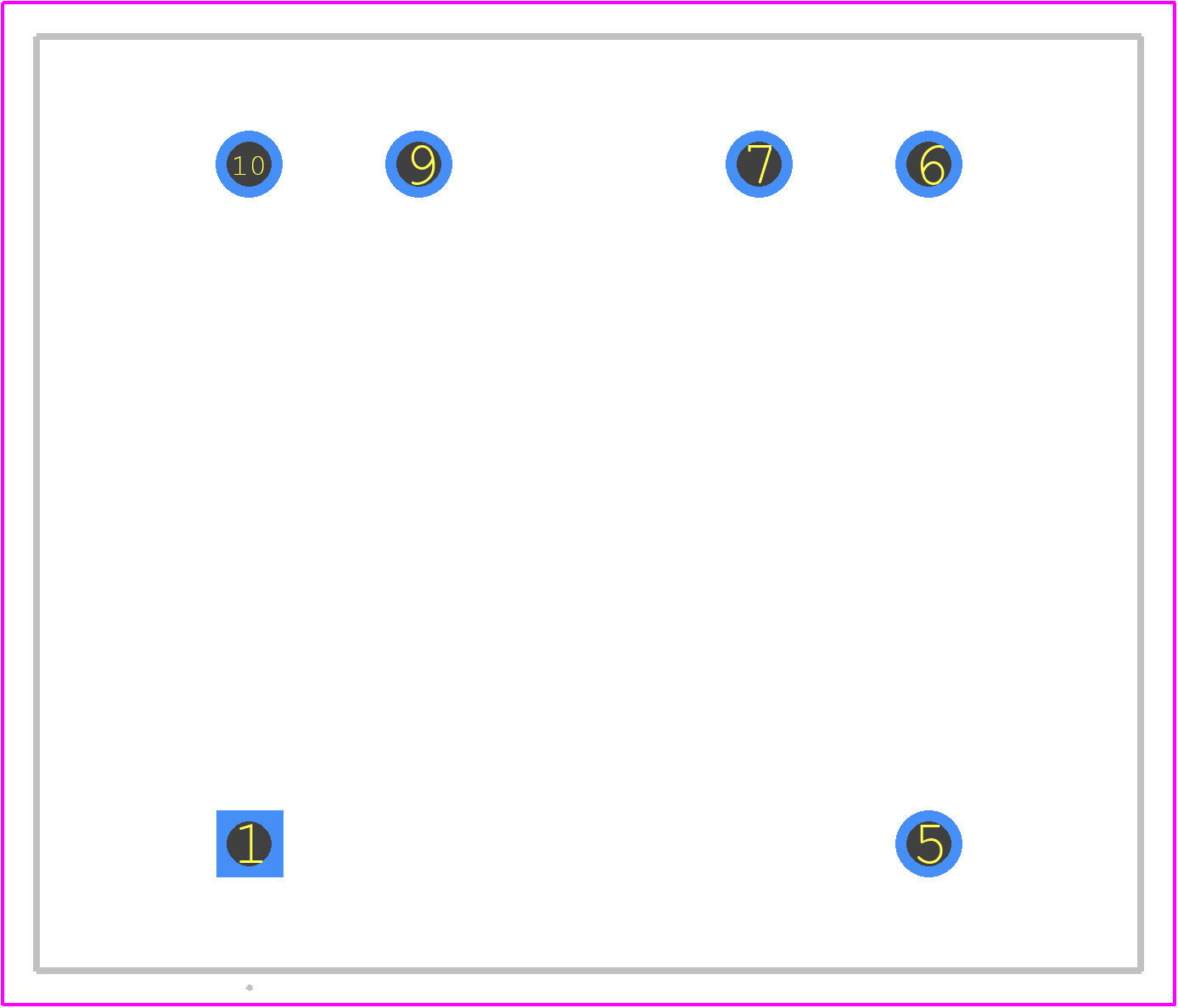

PCB Footprints
44166 - MYRRA PCB footprint - Other - Other - 44166-2
click to zoom
3D Models
44166 - MYRRA  - 3D model - Other - 44166-2
click to zoom

44166 Details

  • Manufacturer Part Number:

    44166

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Myrra

  • Approvals:

    EN; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    29.8 mm

  • Length:

    32.6 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    70 °C

  • Output Current 1:

    0.077 A

  • Output Voltage 1:

    15 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    2.3 VA

  • Width:

    27.6 mm
