44236 - MYRRA

Description: Transformer PCB 5VA 2x9V 9V ac 2 Output Through Hole PCB Transformer, 5VA

Download 44236 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

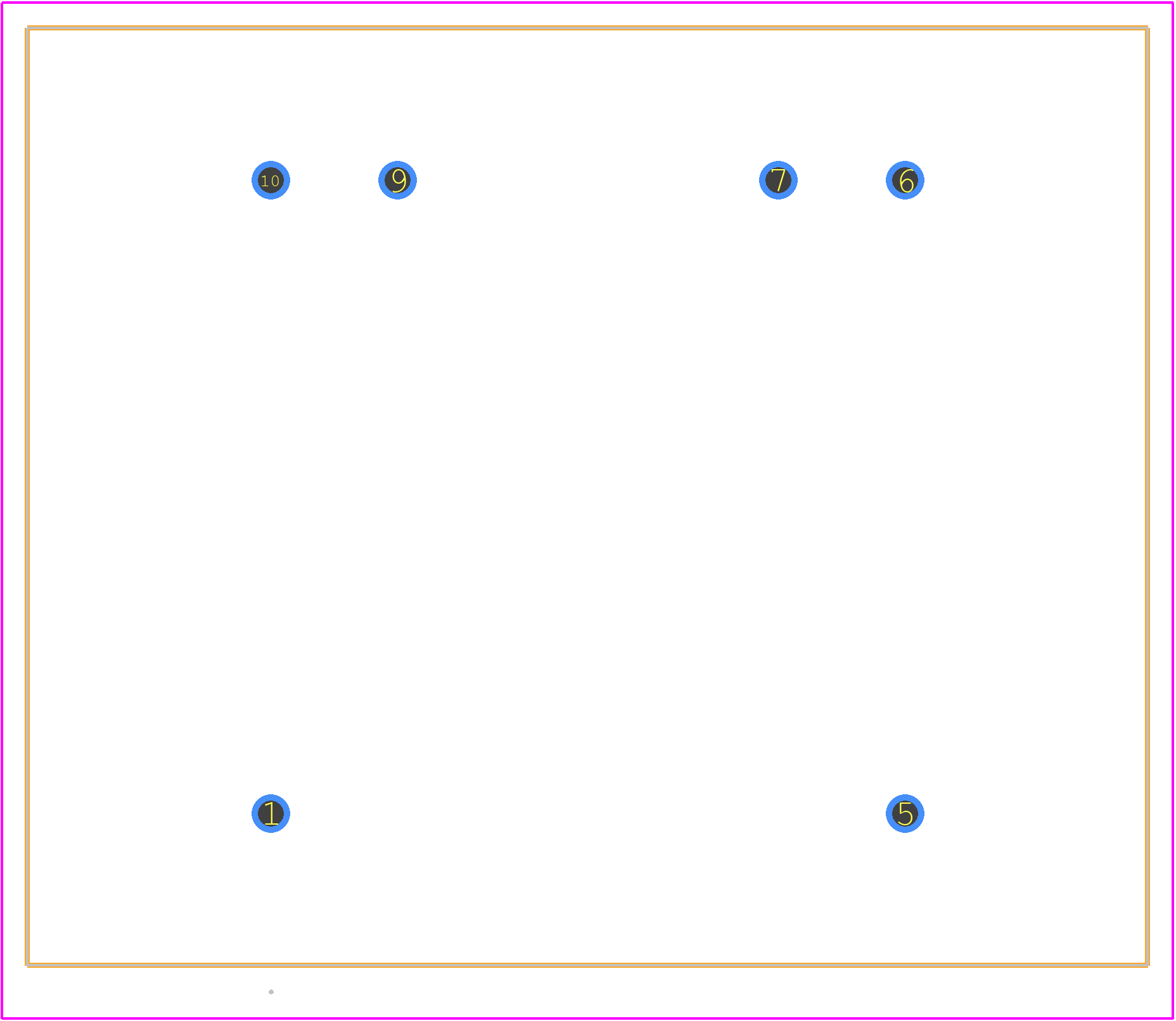

44236 - MYRRA PCB footprint - Other - Other - 44236-1
click to zoom
3D Models
44236 - MYRRA  - 3D model - Other - 44236-1
click to zoom

44236 Details

  • Manufacturer Part Number:

    44236

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Myrra

  • Approvals:

    EN; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    32.25 mm

  • Length:

    44.25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    50 °C

  • Output Current 1:

    0.278 A

  • Output Voltage 1:

    9 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    5 VA

  • Width:

    37 mm

44236 Frequently Asked Questions (FAQs)

  • Myrra recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern around the device's thermal pad to ensure efficient heat dissipation.
  • Myrra suggests using a secure mounting method, such as screwing or adhesive bonding, and ensuring the device is properly soldered to the PCB. Additionally, consider using a vibration-dampening material, like a silicone adhesive, to reduce mechanical stress.
  • Although the datasheet specifies a maximum input voltage, Myrra recommends limiting voltage transients to ±10% of the nominal input voltage to prevent damage or malfunction.
  • Yes, the 44236 can be paralleled to increase output current, but Myrra recommends using a current-sharing scheme, such as a dedicated current-sensing resistor, to ensure equal current distribution and prevent uneven stress on the devices.
  • Myrra suggests checking for soldering issues, ensuring proper input voltage and current, and verifying the PCB layout and thermal design. Additionally, using a logic analyzer or oscilloscope can help identify signal integrity issues or voltage transients that may be causing the fault.
