44273 - MYRRA

Description: 12V ac 2 Output Through Hole PCB Transformer, 10VA

Download 44273 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

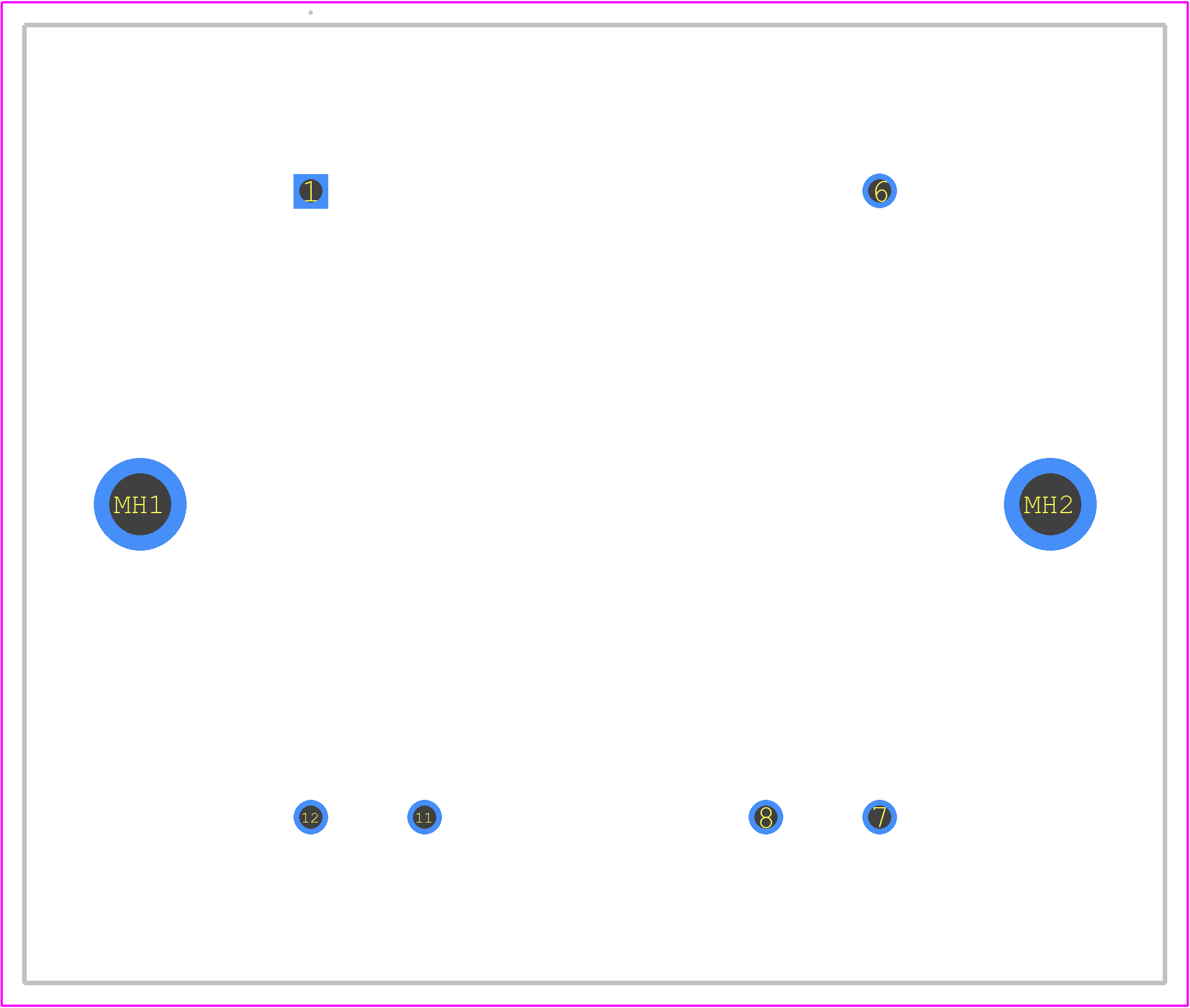

44273 - MYRRA PCB footprint - Other - Other - 44273-2
click to zoom
3D Models
44273 - MYRRA  - 3D model - Other - 44273-2
click to zoom

44273 Details

  • Manufacturer Part Number:

    44273

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Myrra

  • Approvals:

    EN; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    34.75 mm

  • Length:

    50.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    50 °C

  • Output Current 1:

    0.417 A

  • Output Voltage 1:

    12 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    10 VA

  • Width:

    42.5 mm
