44472-2051 - Molex

44472-2051 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 44472-2051 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
• Is this connector suitable for outdoor or harsh environment applications?
  The 44472-2051 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 44472-2051 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.

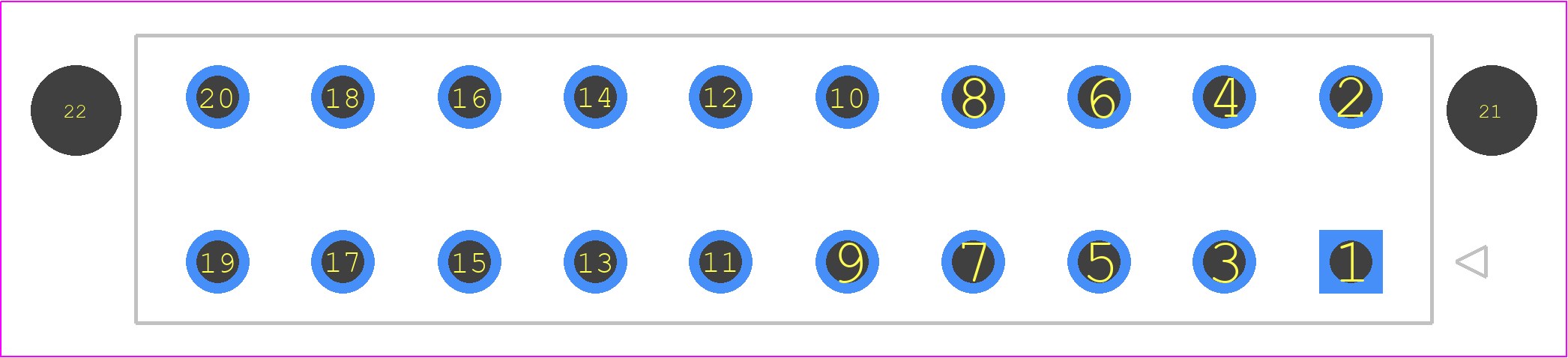

• Are there any specific PCB layout considerations I should be aware of when using this connector?
  Yes, when designing the PCB layout, ensure that the connector is placed in a way that allows for easy access and mating. Also, consider the connector's footprint and keep the PCB traces and components away from the connector's mating area to prevent interference and ensure reliable connections.
