450HXG100MEFCSN20X35 - Rubycon

Description: Cap Aluminum Lytic 100uF 450V 20% (20 X 35mm) Snap-In 10mm 1230mA 3000h 105°C Bulk

Download 450HXG100MEFCSN20X35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450HXG100MEFCSN20X35 - Rubycon - PCB symbol
click to zoom

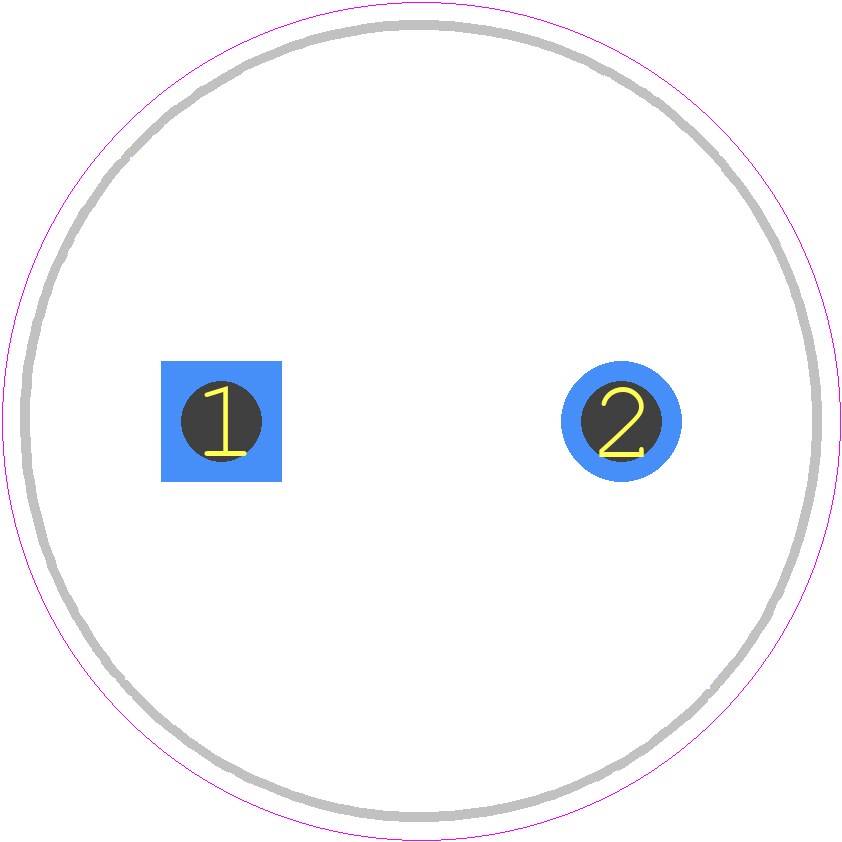

PCB Footprints
450HXG100MEFCSN20X35 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 20*35
click to zoom
3D Models
450HXG100MEFCSN20X35 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 20*35
click to zoom

450HXG100MEFCSN20X35 Details

  • Manufacturer Part Number:

    450HXG100MEFCSN20X35

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    20 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.6364 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1230 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450HXG100MEFCSN20X35 Frequently Asked Questions (FAQs)

  • Rubycon recommends a voltage derating of 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The 450HXG100MEFCSN20X35 is designed to operate in temperatures up to 125°C, but Rubycon recommends reducing the voltage rating by 1.25% for every 1°C above 85°C to ensure reliability.
  • The ESR of the 450HXG100MEFCSN20X35 is not explicitly stated in the datasheet, but Rubycon's general specification for similar capacitors is around 0.02Ω to 0.05Ω. Contact Rubycon or a distributor for more information.
  • The 450HXG100MEFCSN20X35 is a general-purpose aluminum electrolytic capacitor, and its frequency response is limited. For high-frequency applications, Rubycon recommends using their specialized high-frequency capacitors, such as the HG series.
  • Rubycon recommends storing the 450HXG100MEFCSN20X35 in a cool, dry place with a temperature range of 5°C to 30°C and relative humidity below 70%. Avoid storing the capacitor in direct sunlight or near heat sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

450HXG100MEFCSN20X35 Overview

Use the download button to access the 450HXG100MEFCSN20X35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 450HX, or try a keyword search, such as Aluminum Electrolytic Capacitors
