450HXG180MEFCSN22X45 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Download 450HXG180MEFCSN22X45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450HXG180MEFCSN22X45 - Rubycon - PCB symbol
click to zoom

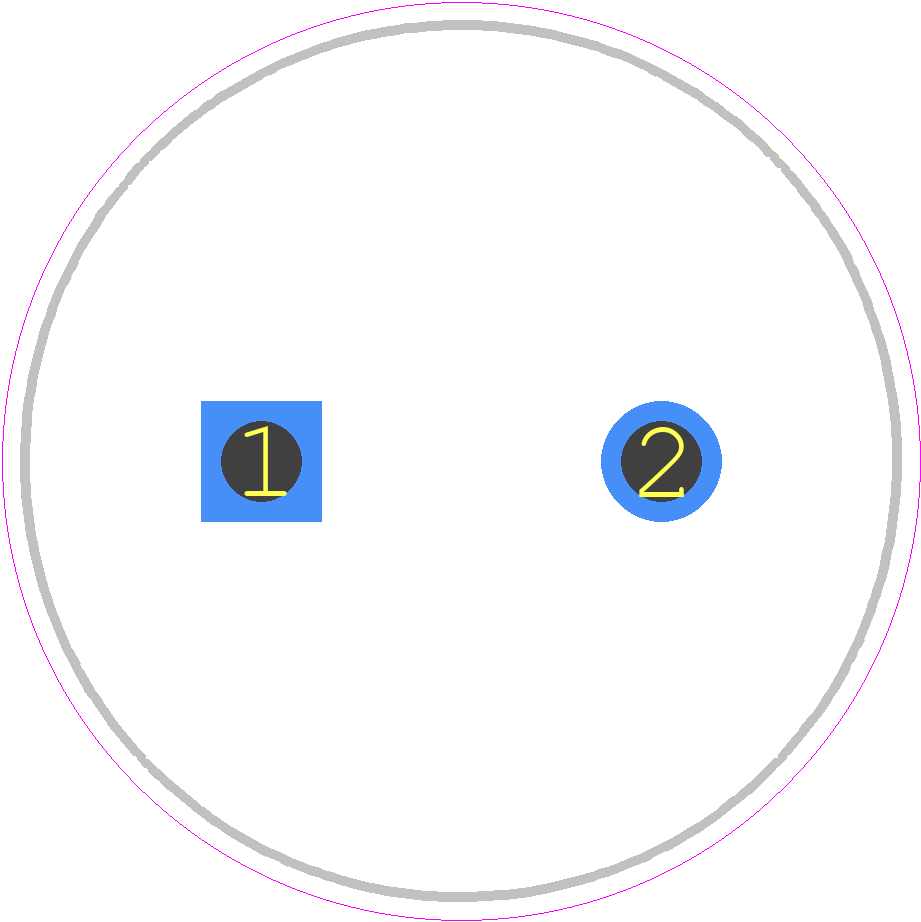

PCB Footprints
450HXG180MEFCSN22X45 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 450HXG180MEFCSN22X45
click to zoom
3D Models
450HXG180MEFCSN22X45 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 450HXG180MEFCSN22X45
click to zoom

450HXG180MEFCSN22X45 Details

  • Manufacturer Part Number:

    450HXG180MEFCSN22X45

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    180 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.85381 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1800 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450HXG180MEFCSN22X45 Frequently Asked Questions (FAQs)

  • Rubycon recommends a voltage derating of 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The 450HXG180MEFCSN22X45 is designed to operate in temperatures up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult Rubycon's temperature derating charts for specific information.
  • The 450HXG180MEFCSN22X45 has a relatively low ESR, making it suitable for high-frequency applications up to several hundred kHz. However, it's essential to consider the capacitor's impedance and resonance frequency in your specific design.
  • Rubycon recommends following standard mounting and handling procedures for electrolytic capacitors, including avoiding excessive bending, twisting, or vibration, and using a soldering iron with a temperature below 350°C.
  • The 450HXG180MEFCSN22X45 meets various safety standards, including RoHS, REACH, and UL. Ensure you comply with relevant safety regulations and guidelines when designing and manufacturing your product.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

450HXG180MEFCSN22X45 Overview

Use the download button to access the 450HXG180MEFCSN22X45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 450HX, or try a keyword search, such as Aluminum Electrolytic Capacitors
