450MXG270MEFCSN25X45 - Rubycon

Description: 270 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

Download 450MXG270MEFCSN25X45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450MXG270MEFCSN25X45 - Rubycon - PCB symbol
click to zoom
PCB Footprints

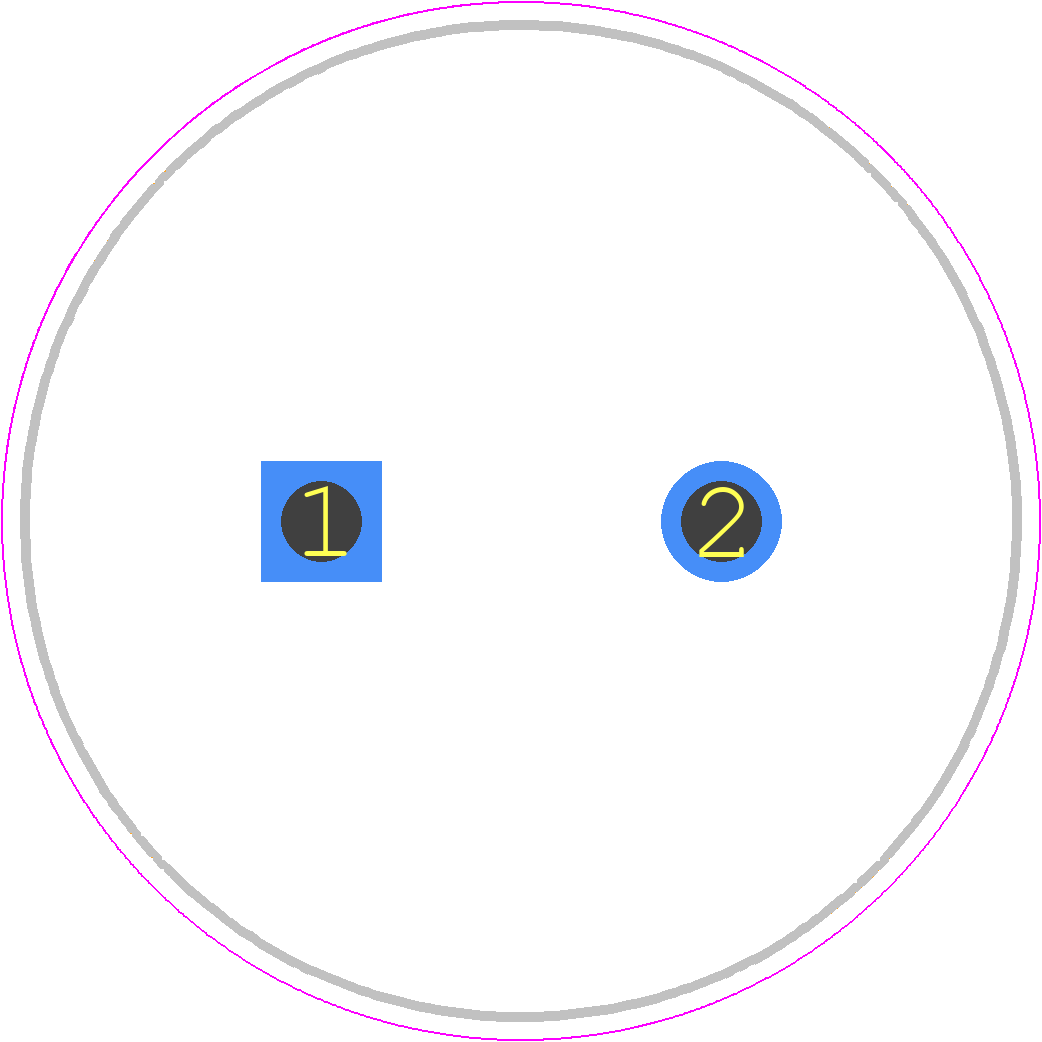

450MXG270MEFCSN25X45 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25mm x 45mm
click to zoom
3D Models
450MXG270MEFCSN25X45 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 25mm x 45mm
click to zoom

450MXG270MEFCSN25X45 Details

  • Manufacturer Part Number:

    450MXG270MEFCSN25X45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    270 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.04571 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1620 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

450MXG270MEFCSN25X45 Frequently Asked Questions (FAQs)

  • Rubycon recommends a voltage derating of 80% or less to ensure reliable operation and prevent overheating.
  • The ESR of the 450MXG270MEFCSN25X45 capacitor decreases with increasing frequency, but the exact values can be obtained from Rubycon's application notes or by contacting their technical support.
  • While the 450MXG270MEFCSN25X45 capacitor meets industry standards for reliability, it may not meet the specific requirements of high-reliability applications. Engineers should consult Rubycon's documentation and conduct thorough testing to ensure the capacitor meets their specific needs.
  • The 450MXG270MEFCSN25X45 capacitor has a maximum operating temperature of 125°C, but its performance and lifespan may degrade at high temperatures. Engineers should consider the capacitor's temperature derating and ensure it meets their specific application requirements.
  • The capacitance of the 450MXG270MEFCSN25X45 capacitor decreases with increasing temperature, following a typical capacitance-temperature curve for electrolytic capacitors. The exact values can be obtained from Rubycon's documentation or by contacting their technical support.
