450MXK390MEFCSN25X50 - Rubycon

Description: 390 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 3000 Hrs @ 105°C

Download 450MXK390MEFCSN25X50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450MXK390MEFCSN25X50 - Rubycon - PCB symbol
click to zoom
PCB Footprints

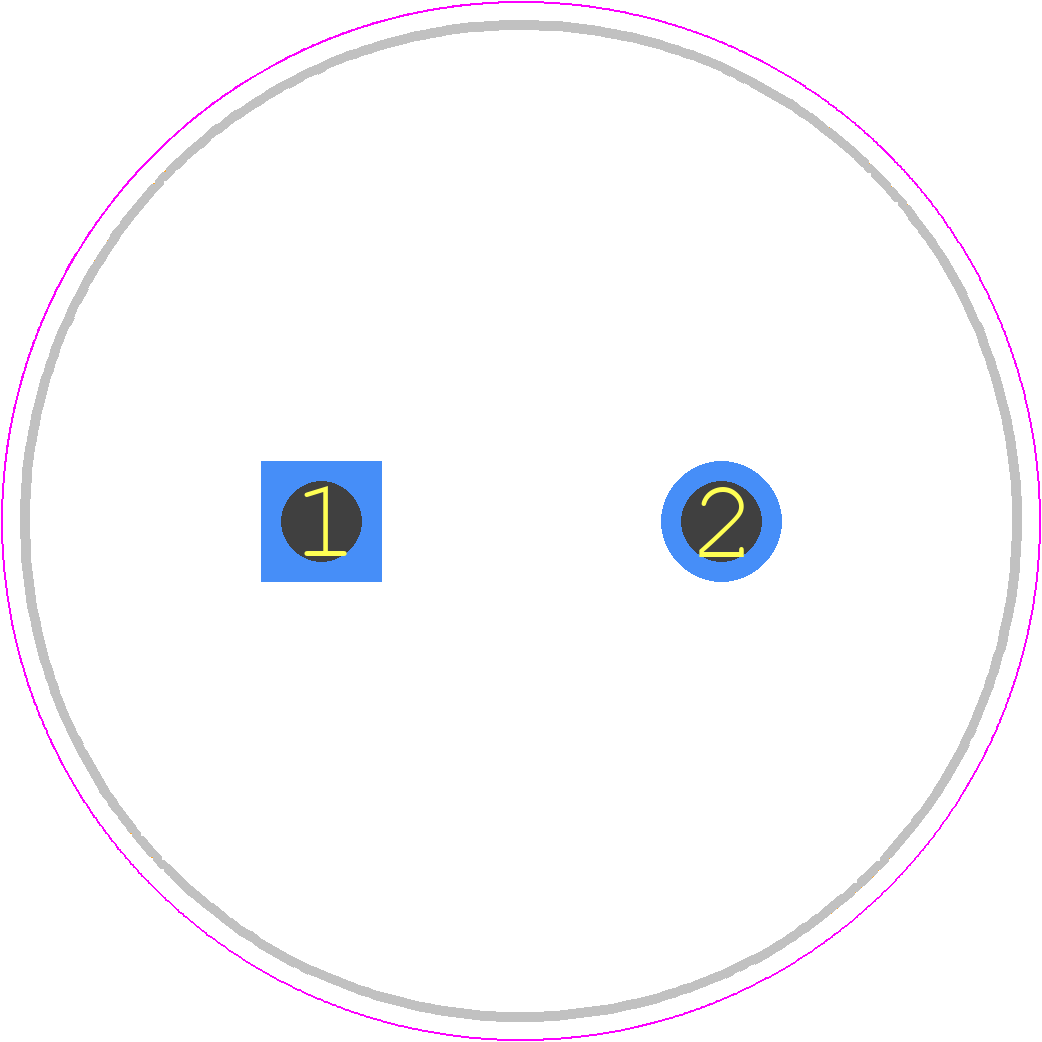

450MXK390MEFCSN25X50 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25*50---
click to zoom
3D Models
450MXK390MEFCSN25X50 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 25*50---
click to zoom

450MXK390MEFCSN25X50 Details

  • Manufacturer Part Number:

    450MXK390MEFCSN25X50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    390 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.25678 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2040 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450MXK390MEFCSN25X50 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 450MXK390MEFCSN25X50 capacitor is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 450MXK390MEFCSN25X50 capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive and industrial control systems.
  • The ESR of the 450MXK390MEFCSN25X50 capacitor is approximately 0.015 ohms at 100 kHz.
  • Yes, the 450MXK390MEFCSN25X50 capacitor is suitable for use in DC-DC converter applications due to its low ESR and high ripple current rating.
  • The MSL of the 450MXK390MEFCSN25X50 capacitor is level 3, which means it can withstand exposure to moisture for up to 168 hours.
