450MXK680MEFCSN30X55 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In HIGH CAPACITANCE DENSITY ELECTROLYTIC CAPACITOR

Download 450MXK680MEFCSN30X55 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450MXK680MEFCSN30X55 - Rubycon - PCB symbol
click to zoom

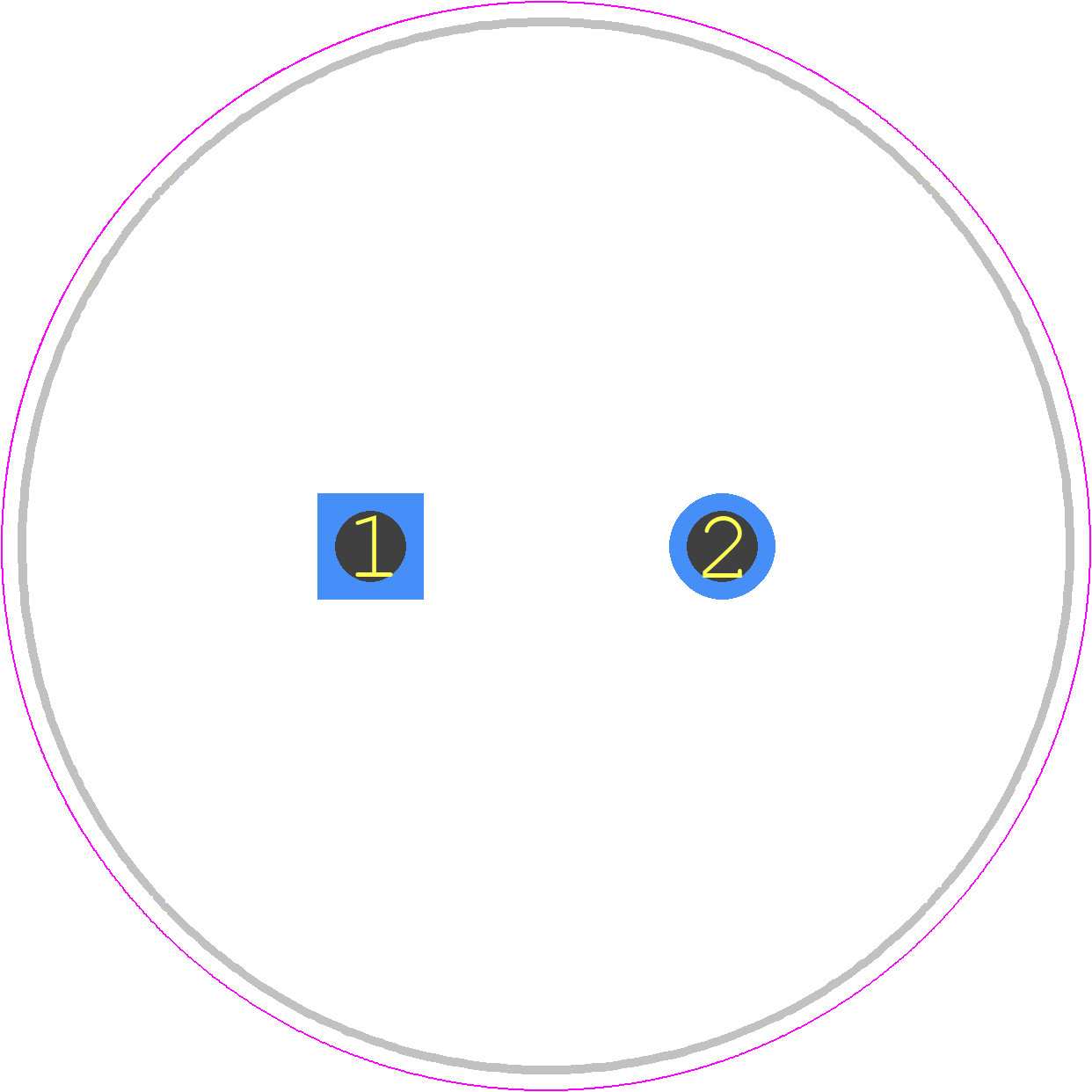

PCB Footprints
450MXK680MEFCSN30X55 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30*50
click to zoom
3D Models
450MXK680MEFCSN30X55 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 30*50
click to zoom

450MXK680MEFCSN30X55 Details

  • Manufacturer Part Number:

    450MXK680MEFCSN30X55

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.65952 mA

  • Length:

    55 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2540 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450MXK680MEFCSN30X55 Frequently Asked Questions (FAQs)

  • Rubycon recommends a voltage derating of 80% or less to ensure reliable operation and prevent overheating.
  • The ESR of the 450MXK680MEFCSN30X55 capacitor decreases with increasing frequency, but Rubycon provides a graph in the datasheet to illustrate this relationship.
  • The ripple current rating of the 450MXK680MEFCSN30X55 capacitor is 3.5A at 100kHz, but this value decreases at higher frequencies; consult the datasheet for specific values.
  • Yes, the 450MXK680MEFCSN30X55 capacitor is designed for high-reliability applications and meets the requirements of various industry standards, including IEC 60384-4 and MIL-C-39006.
  • The 450MXK680MEFCSN30X55 capacitor has an MSL rating of 2, indicating that it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.
