450MXK820MEFCSN35X50 - Rubycon

Description: 820 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

Download 450MXK820MEFCSN35X50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450MXK820MEFCSN35X50 - Rubycon - PCB symbol
click to zoom
PCB Footprints

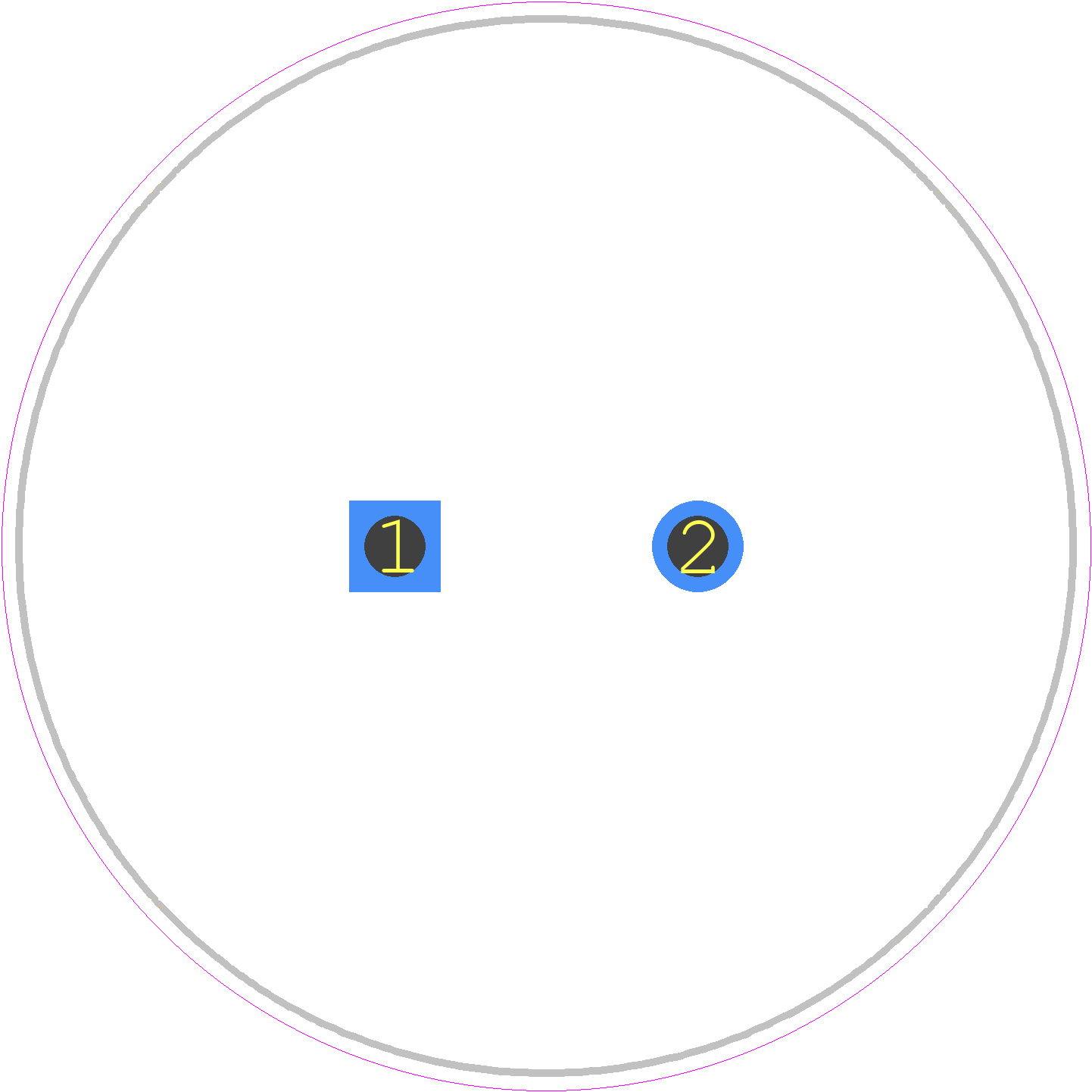

450MXK820MEFCSN35X50 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35mm x 52mm_2025-1.1
click to zoom
3D Models
450MXK820MEFCSN35X50 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 35mm x 52mm_2025-1.1
click to zoom

450MXK820MEFCSN35X50 Details

  • Manufacturer Part Number:

    450MXK820MEFCSN35X50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    820 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.82236 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2590 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450MXK820MEFCSN35X50 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 450MXK820MEFCSN35X50 capacitor is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 450MXK820MEFCSN35X50 capacitor is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and 3 directions (X, Y, Z) according to IEC 60068-2-6.
  • Yes, the 450MXK820MEFCSN35X50 capacitor meets the requirements of AEC-Q200, making it suitable for automotive applications.
  • The maximum permissible ripple current for the 450MXK820MEFCSN35X50 capacitor is 3.5A at 100kHz, 120Hz, and 25°C.
  • Yes, the 450MXK820MEFCSN35X50 capacitor is designed to operate in temperatures up to 125°C, making it suitable for high-temperature applications.
