The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 20 seconds or less. It's essential to follow the soldering profile recommended by Rubycon to prevent damage to the capacitor.
Yes, the 450UFG820MBN40X60 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, and 3 hours per axis (IEC 60068-2-6). However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress.
The 450UFG820MBN40X60 is designed for high-frequency applications, and its impedance characteristics are optimized for frequencies up to 100 kHz. However, it's essential to consider the capacitor's equivalent series resistance (ESR) and equivalent series inductance (ESL) when operating at high frequencies.
The 450UFG820MBN40X60 has an MSL rating of 2, which means it can withstand a maximum of 30 days at 30°C (86°F) and 60% relative humidity before soldering. It's essential to follow proper storage and handling procedures to prevent moisture absorption.
The 450UFG820MBN40X60 is rated for operation up to 105°C (221°F), but its capacitance and ESR may degrade at higher temperatures. It's essential to consider the capacitor's temperature derating and ensure it operates within the recommended temperature range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
450UFG820MBN40X60 Overview

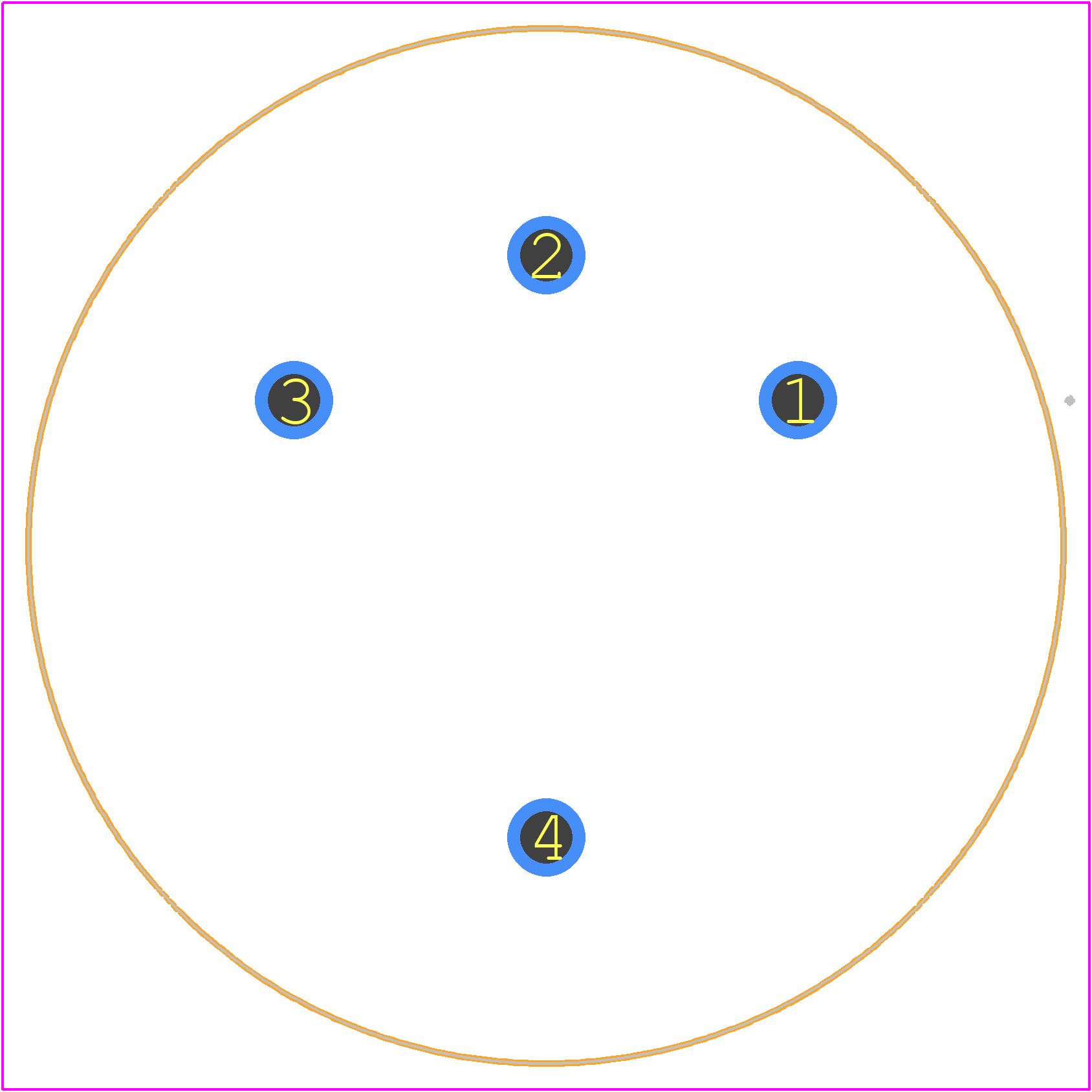

Use the download button to access the 450UFG820MBN40X60 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 450UF,
or try a keyword search, such as Aluminum Electrolytic Capacitors
