450USH680MEFCSN35X45 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Download 450USH680MEFCSN35X45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450USH680MEFCSN35X45 - Rubycon - PCB symbol
click to zoom
PCB Footprints

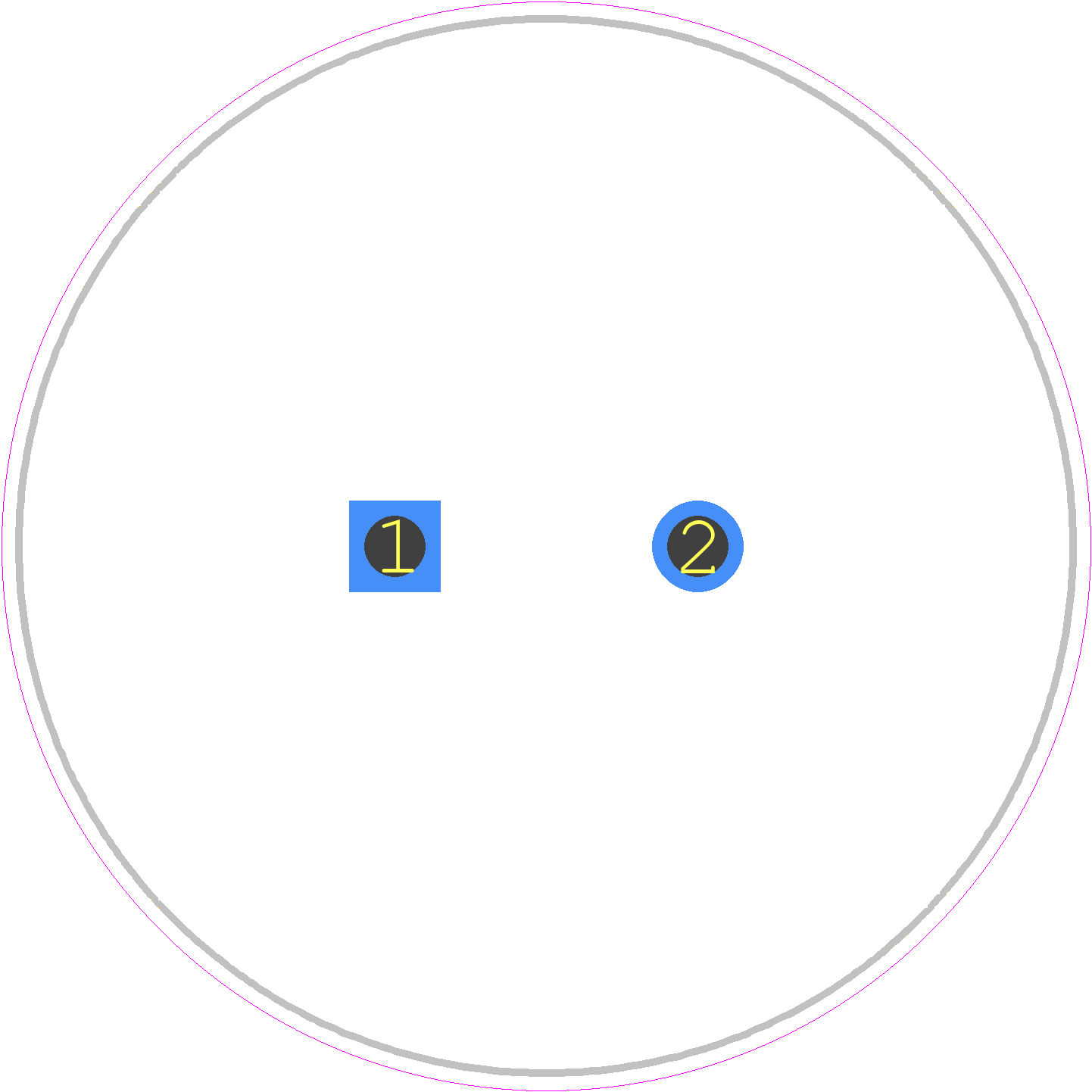

450USH680MEFCSN35X45 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35*45
click to zoom
3D Models
450USH680MEFCSN35X45 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 35*45
click to zoom

450USH680MEFCSN35X45 Details

  • Manufacturer Part Number:

    450USH680MEFCSN35X45

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.65952 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    3250 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450USH680MEFCSN35X45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 250°C to 260°C, and the soldering time should be within 3 to 5 seconds to prevent damage to the capacitor.
  • Yes, the 450USH680MEFCSN35X45 is designed to withstand vibrations up to 10Hz to 2000Hz, 10mm double amplitude, making it suitable for use in high-vibration environments.
  • The ESR of the 450USH680MEFCSN35X45 is approximately 35mΩ at 100kHz, which is relatively low and suitable for high-frequency applications.
  • Yes, the 450USH680MEFCSN35X45 is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in environmentally friendly designs.
  • The recommended storage condition for the 450USH680MEFCSN35X45 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%.
