450VXG220MEFCSN30X30 - Rubycon

Description: 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C

Download 450VXG220MEFCSN30X30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450VXG220MEFCSN30X30 - Rubycon - PCB symbol
click to zoom
PCB Footprints

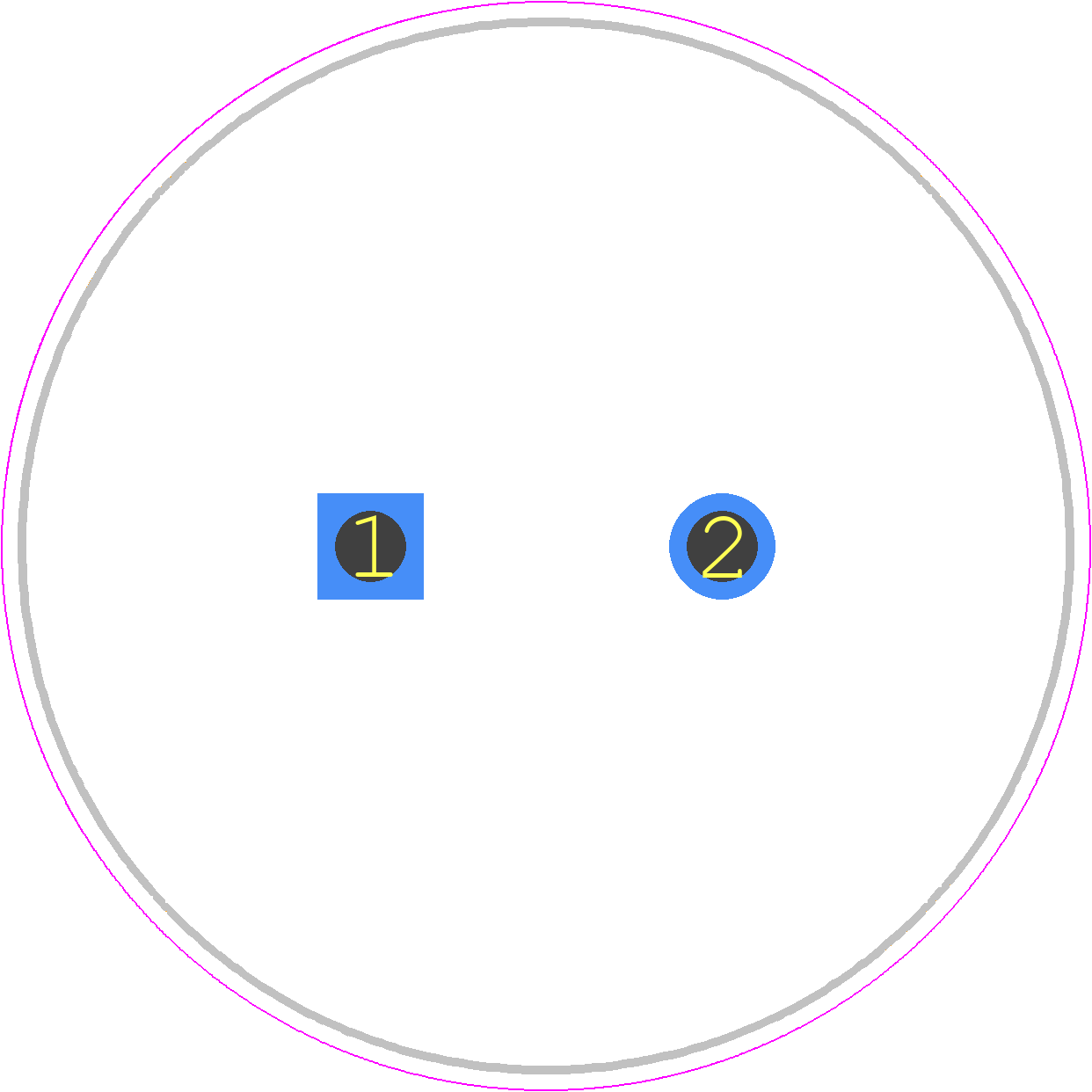

450VXG220MEFCSN30X30 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30mm x 30mm
click to zoom
3D Models
450VXG220MEFCSN30X30 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 30mm x 30mm
click to zoom

450VXG220MEFCSN30X30 Details

  • Manufacturer Part Number:

    450VXG220MEFCSN30X30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.94393 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1320 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450VXG220MEFCSN30X30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 450VXG220MEFCSN30X30 capacitor is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 450VXG220MEFCSN30X30 capacitor is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and 3 directions (X, Y, Z) according to IEC 60068-2-6.
  • The capacitor should be stored in a dry, cool place away from direct sunlight, and transported in its original packaging to prevent mechanical stress and moisture absorption.
  • The derating curve for the 450VXG220MEFCSN30X30 capacitor is typically 1.25 times the rated voltage at 85°C, and 1.5 times the rated voltage at 70°C, but it's recommended to consult Rubycon Corporation for the latest information.
  • The 450VXG220MEFCSN30X30 capacitor is designed to operate in environments with a relative humidity of up to 90% RH, but it's recommended to take precautions to prevent moisture absorption and condensation.
