450VXG470MEFCSN35X45 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In LONG LIFE ALUMINUM ELECTROLYTIC CAPACITORS

Download 450VXG470MEFCSN35X45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450VXG470MEFCSN35X45 - Rubycon - PCB symbol
click to zoom
PCB Footprints

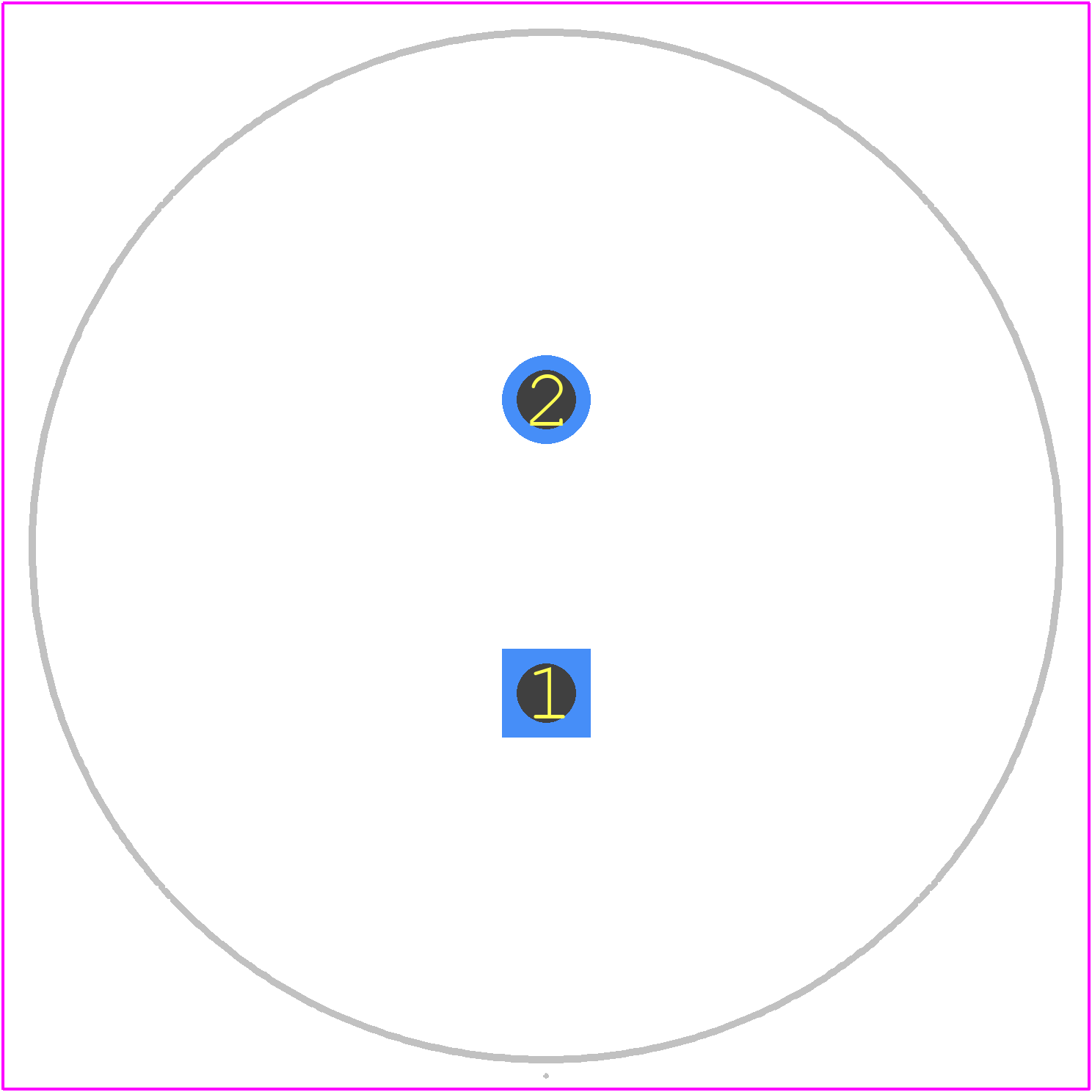

450VXG470MEFCSN35X45 - Rubycon PCB footprint - Other - Other - 450VXG470MEFCSN35X45-3
click to zoom
3D Models
450VXG470MEFCSN35X45 - Rubycon - 3D model - Other - 450VXG470MEFCSN35X45-3
click to zoom

450VXG470MEFCSN35X45 Details

  • Manufacturer Part Number:

    450VXG470MEFCSN35X45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.37967 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2050 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450VXG470MEFCSN35X45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 450VXG470MEFCSN35X45 capacitor is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 450VXG470MEFCSN35X45 capacitor is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration environments.
  • Yes, the 450VXG470MEFCSN35X45 capacitor is designed to operate in humid environments with a maximum relative humidity of 95% at 40°C.
  • The expected lifespan of the 450VXG470MEFCSN35X45 capacitor is approximately 10 years at 85°C, with a maximum operating temperature of 105°C.
  • Yes, the 450VXG470MEFCSN35X45 capacitor is designed to operate in high-temperature environments up to 105°C, but the lifespan may be reduced at higher temperatures.
