450VXH100MEFCSN22X25 - Rubycon

Description: Rubycon 100μF 450 V dc Aluminium Electrolytic Capacitor, VXH Series 5000h 22 x 25mm

Download 450VXH100MEFCSN22X25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450VXH100MEFCSN22X25 - Rubycon - PCB symbol
click to zoom
PCB Footprints

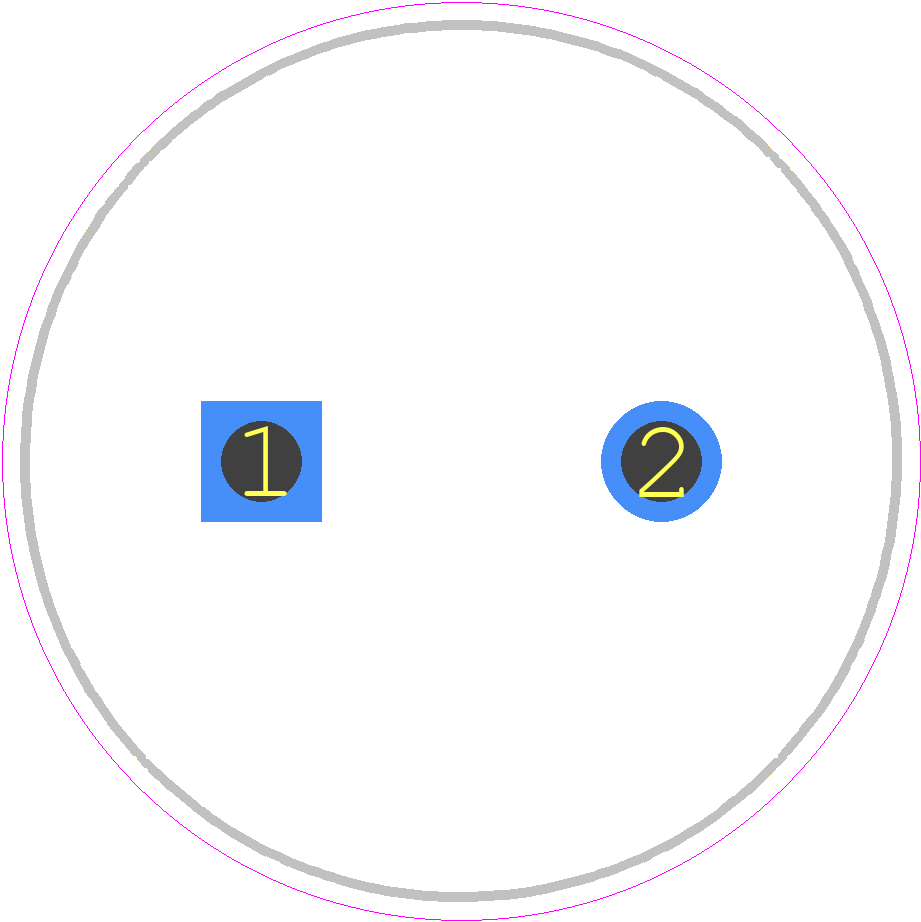

450VXH100MEFCSN22X25 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 21mmX27mm
click to zoom
3D Models
450VXH100MEFCSN22X25 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 21mmX27mm
click to zoom

450VXH100MEFCSN22X25 Details

  • Manufacturer Part Number:

    450VXH100MEFCSN22X25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.6364 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    850 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450VXH100MEFCSN22X25 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less. Exceeding this temperature or time may damage the capacitor.
  • Yes, the 450VXH100MEFCSN22X25 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude. However, it's recommended to consult with Rubycon Corporation for specific vibration requirements.
  • The 450VXH100MEFCSN22X25 is designed to operate in humid environments, but it's recommended to follow the IPC-J-STD-020 standard for moisture sensitivity. Rubycon Corporation recommends storing the capacitors in a dry environment (RH < 60%) and avoiding exposure to moisture during assembly.
  • Rubycon Corporation recommends derating the capacitor by 50% of its rated voltage to ensure reliable operation. For example, if the capacitor is rated for 450V, it's recommended to operate it at 225V or less.
  • The 450VXH100MEFCSN22X25 is designed to operate up to 105°C. However, Rubycon Corporation recommends derating the capacitor's voltage and current ratings for temperatures above 85°C to ensure reliable operation.
