The recommended soldering temperature is 260°C (500°F) for 3 seconds or less. Exceeding this temperature or time may damage the capacitor.
Yes, the 450VXH150MEFCSN25X30 is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's recommended to consult with Rubycon Corporation for specific vibration requirements.
The 450VXH150MEFCSN25X30 is designed to operate in humid environments, but it's recommended to follow the IPC-J-STD-020 standard for moisture sensitivity. Rubycon Corporation recommends storing the capacitors in a dry environment (RH < 60%) and avoiding exposure to moisture during assembly.
Rubycon Corporation recommends derating the capacitor by 50% of its rated voltage to ensure reliable operation. For example, if the capacitor is rated for 450V, it's recommended to operate it at 225V or less.
The 450VXH150MEFCSN25X30 is designed to operate up to 125°C. However, Rubycon Corporation recommends derating the capacitor's voltage and current ratings at higher temperatures to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
450VXH150MEFCSN25X30 Overview

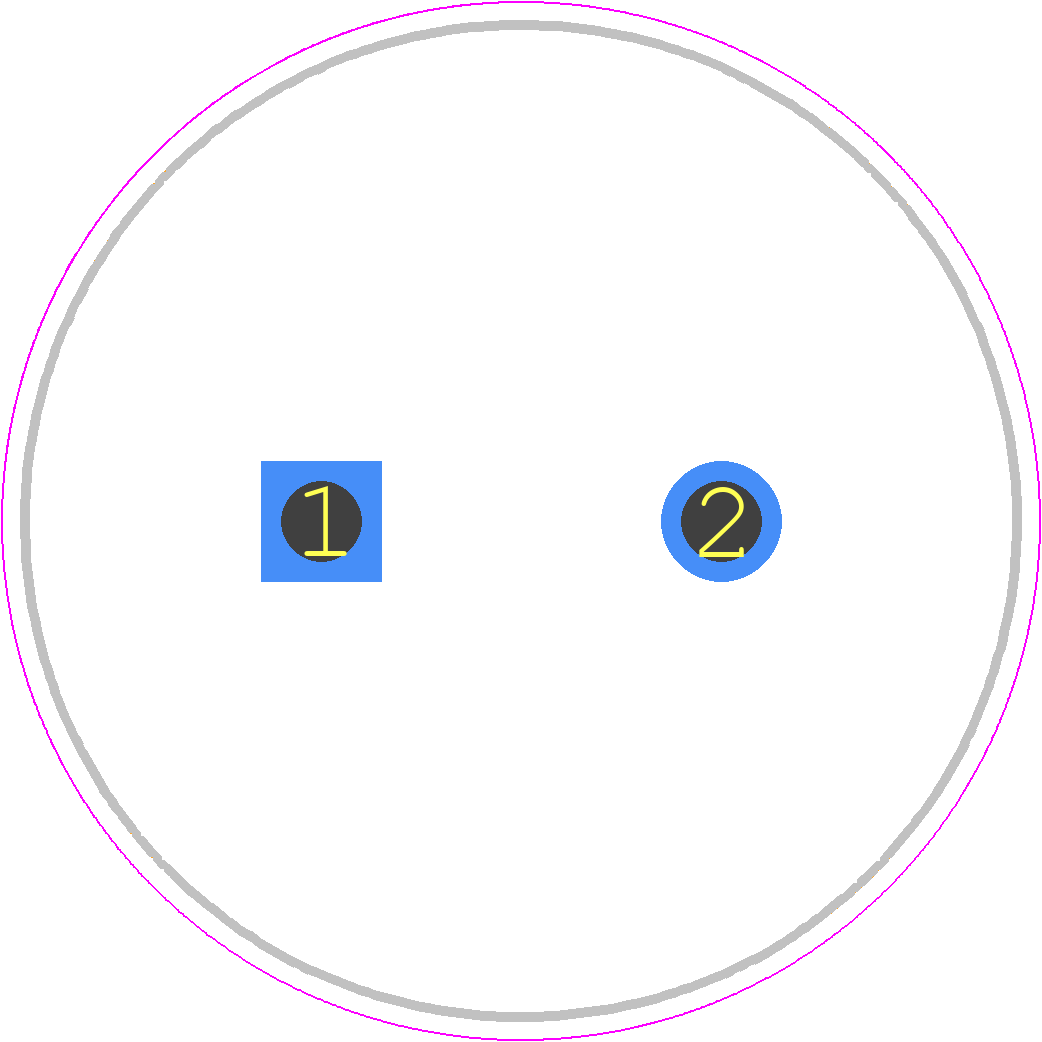

Use the download button to access the 450VXH150MEFCSN25X30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 450VX,
or try a keyword search, such as Aluminum Electrolytic Capacitors
