450VXH220MEFCSN25X35 - Rubycon

Description: Rubycon 220μF 450 V dc Aluminium Electrolytic Capacitor, VXH Series 5000h 25 x 35mm

Download 450VXH220MEFCSN25X35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450VXH220MEFCSN25X35 - Rubycon - PCB symbol
click to zoom
PCB Footprints

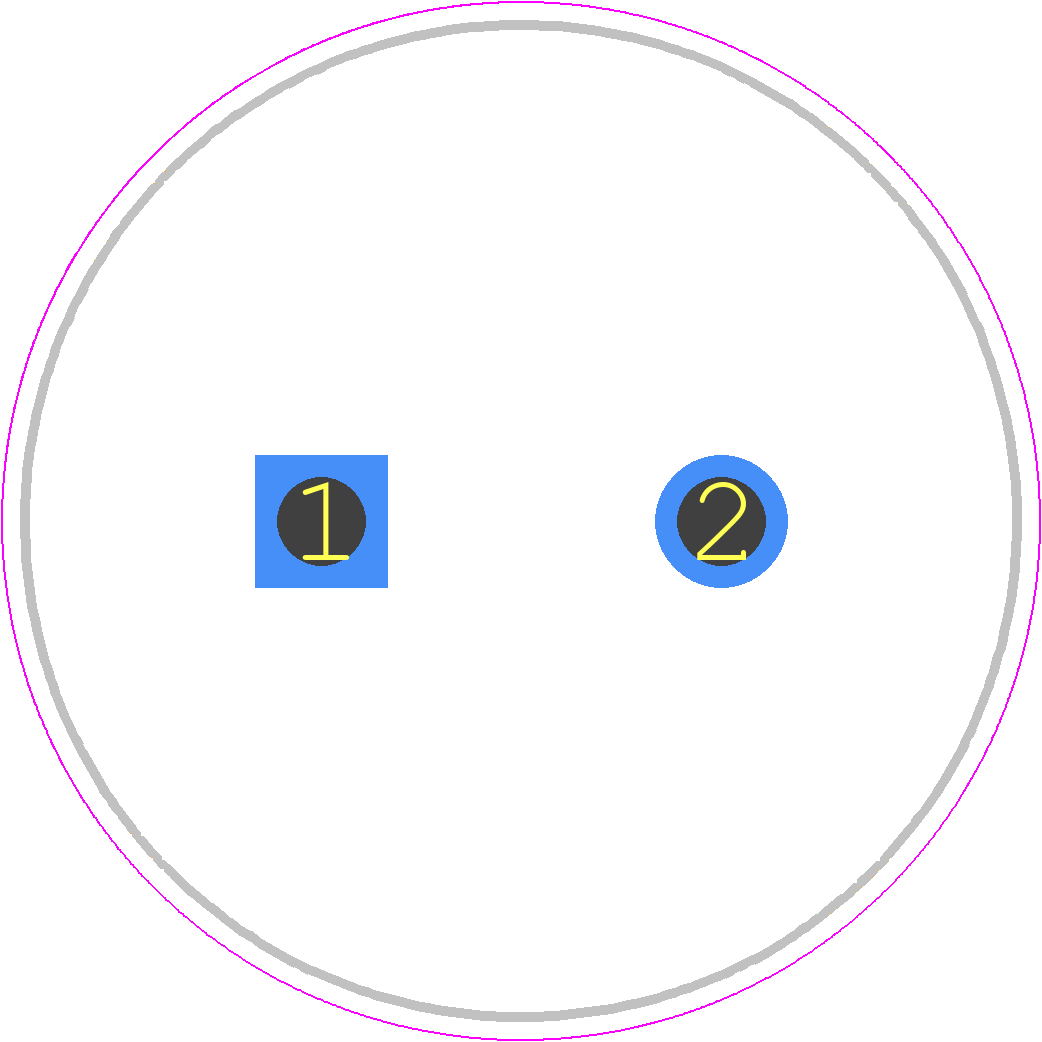

450VXH220MEFCSN25X35 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25X35
click to zoom
3D Models
450VXH220MEFCSN25X35 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 25X35
click to zoom

450VXH220MEFCSN25X35 Details

  • Manufacturer Part Number:

    450VXH220MEFCSN25X35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.94393 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1370 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450VXH220MEFCSN25X35 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3-5 seconds.
  • Yes, the 450VXH220MEFCSN25X35 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for this capacitor is typically provided by the manufacturer upon request. It shows the reduction in capacitance and voltage rating at elevated temperatures.
  • Yes, the 450VXH220MEFCSN25X35 capacitor is designed to withstand vibrations and is suitable for use in high-vibration environments, but it's recommended to consult with the manufacturer for specific vibration testing and validation.
  • The ESR of the 450VXH220MEFCSN25X35 capacitor is typically around 0.05 ohms, but this value can vary depending on the frequency and temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

450VXH220MEFCSN25X35 Overview

Use the download button to access the 450VXH220MEFCSN25X35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 450VX, or try a keyword search, such as Aluminum Electrolytic Capacitors
