450VXH330MEFCSN35X30 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In LONG LIFE ALUMINUM ELECTROLYTIC CAPACITORS

Download 450VXH330MEFCSN35X30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450VXH330MEFCSN35X30 - Rubycon - PCB symbol
click to zoom
PCB Footprints

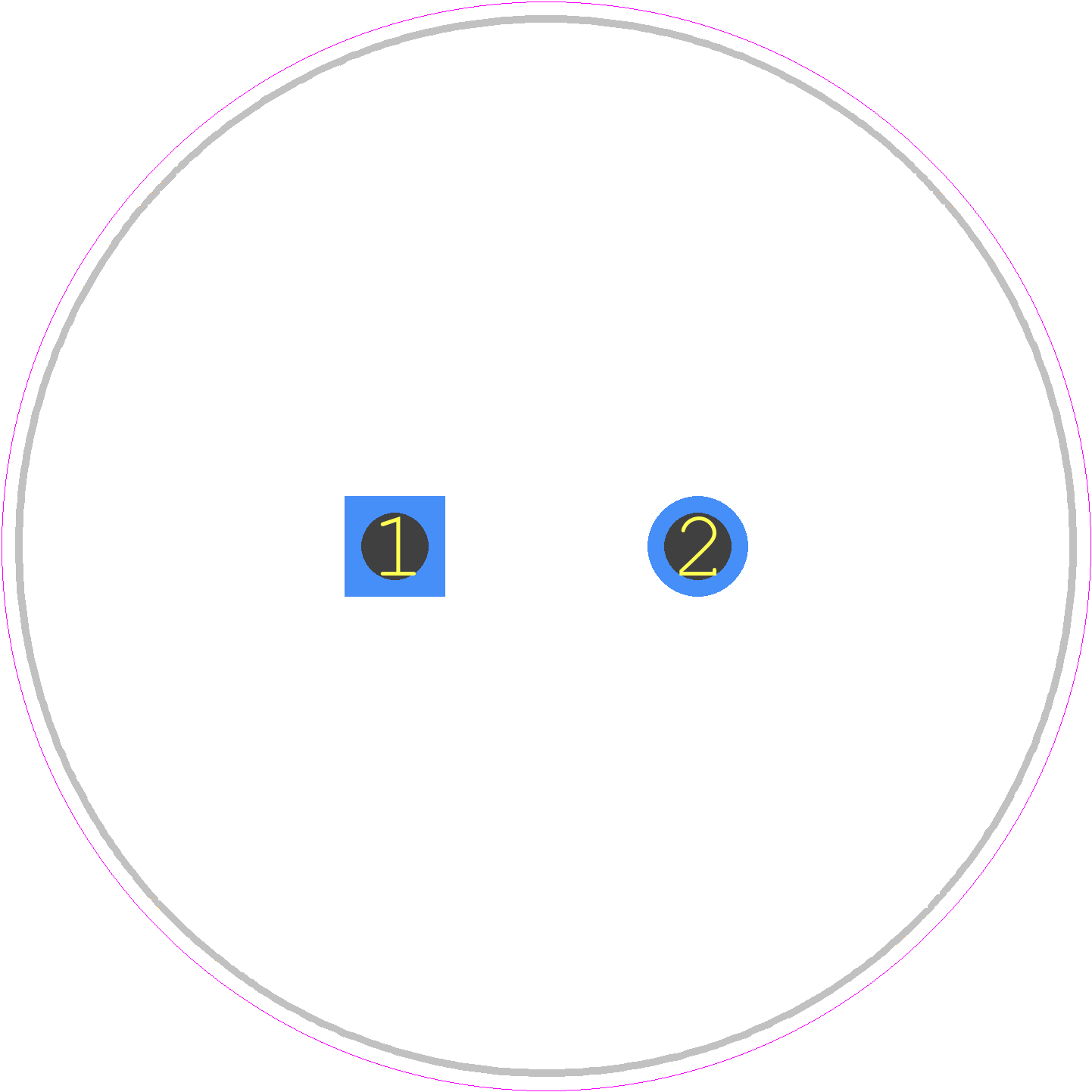

450VXH330MEFCSN35X30 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - dip
click to zoom
3D Models
450VXH330MEFCSN35X30 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - dip
click to zoom

450VXH330MEFCSN35X30 Details

  • Manufacturer Part Number:

    450VXH330MEFCSN35X30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.15607 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1530 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450VXH330MEFCSN35X30 Frequently Asked Questions (FAQs)

  • Rubycon recommends derating the capacitor's voltage rating by 1.25% per degree Celsius above 85°C to ensure reliable operation.
  • According to Rubycon's application notes, the ESR of the 450VXH330MEFCSN35X30 capacitor decreases with increasing frequency, with a typical value of 0.12 ohms at 100 kHz.
  • Yes, the 450VXH330MEFCSN35X30 capacitor is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The 450VXH330MEFCSN35X30 capacitor has an MSL rating of 2, indicating that it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.
  • Yes, the 450VXH330MEFCSN35X30 capacitor is suitable for use in DC-DC converter applications due to its low ESR and high ripple current rating.
