450VXH390MEFCSN30X45 - Rubycon

Description: Aluminum Electrolytic Capacitors 390uF , 450VDC Snap In 1.93A , 120Hz , 30 x 45mm , -25℃ ～ +105℃

Download 450VXH390MEFCSN30X45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450VXH390MEFCSN30X45 - Rubycon - PCB symbol
click to zoom
PCB Footprints

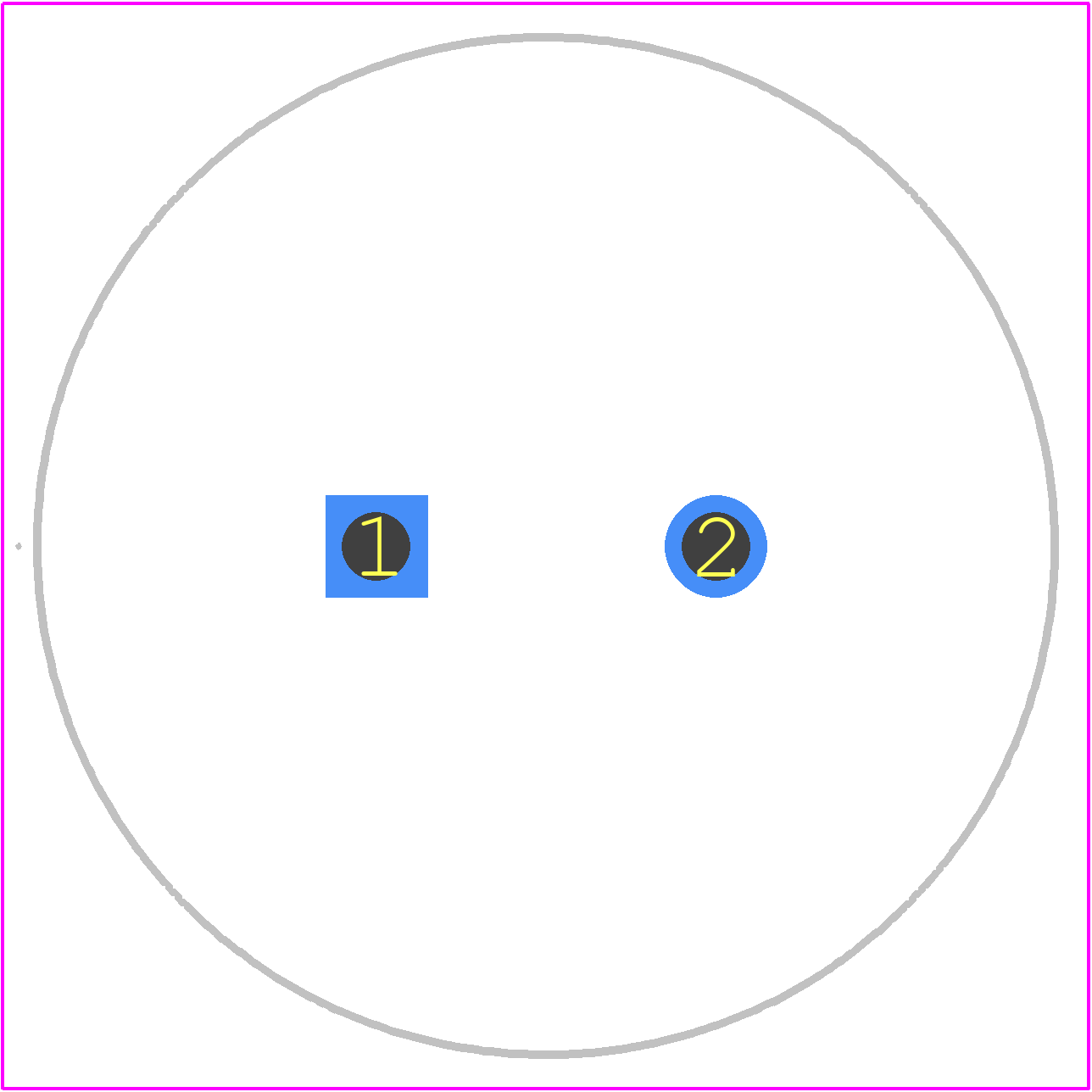

450VXH390MEFCSN30X45 - Rubycon PCB footprint - Other - Other - 30x45mm
click to zoom
3D Models
450VXH390MEFCSN30X45 - Rubycon - 3D model - Other - 30x45mm
click to zoom

450VXH390MEFCSN30X45 Details

  • Manufacturer Part Number:

    450VXH390MEFCSN30X45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    390 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.25678 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1930 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450VXH390MEFCSN30X45 Frequently Asked Questions (FAQs)

  • Rubycon recommends derating the voltage rating by 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The 450VXH390MEFCSN30X45 is designed to operate up to 105°C, but its capacitance and ESR may degrade at higher temperatures. Consult Rubycon's temperature derating charts for specific guidance.
  • While the 450VXH390MEFCSN30X45 is a general-purpose capacitor, it may not be the best choice for high-frequency applications (>100 kHz) due to its relatively high ESR. Consider Rubycon's high-frequency capacitor series for such applications.
  • Rubycon recommends a soldering profile with a peak temperature of 260°C, a dwell time of 3-5 seconds, and a preheating temperature of 120-150°C to prevent thermal shock and ensure reliable solder joints.
  • Yes, the 450VXH390MEFCSN30X45 is suitable for use in DC-DC converters and switching power supplies, but ensure that the capacitor's voltage and current ratings are not exceeded, and that the design meets Rubycon's recommended guidelines.
