450VXH470MEFCSN30X50 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In LONG LIFE ALUMINUM ELECTROLYTIC CAPACITORS

Download 450VXH470MEFCSN30X50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
450VXH470MEFCSN30X50 - Rubycon - PCB symbol
click to zoom
PCB Footprints

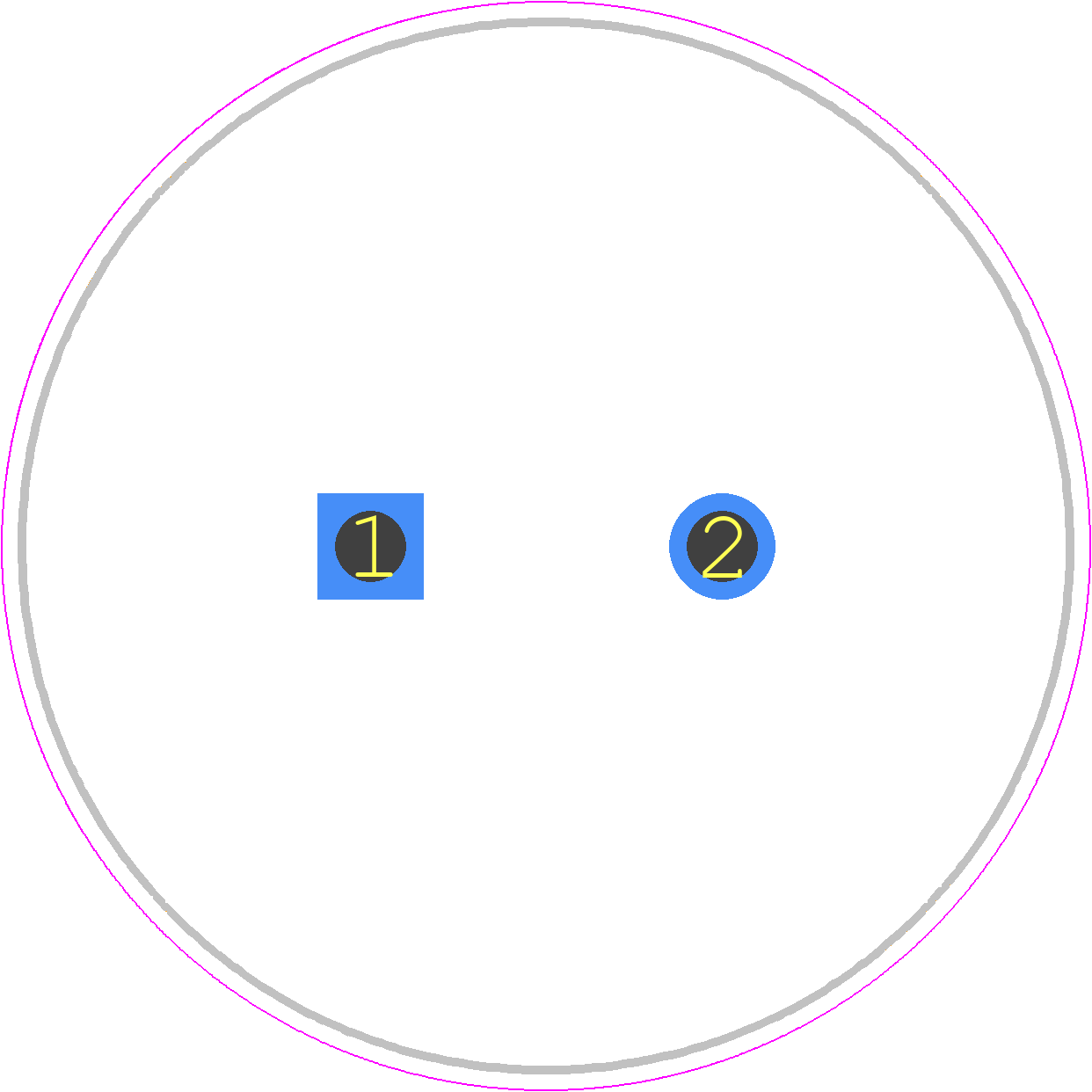

450VXH470MEFCSN30X50 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30*50
click to zoom
3D Models
450VXH470MEFCSN30X50 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 30*50
click to zoom

450VXH470MEFCSN30X50 Details

  • Manufacturer Part Number:

    450VXH470MEFCSN30X50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.37967 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2140 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

450VXH470MEFCSN30X50 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 450VXH470MEFCSN30X50 capacitor is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 450VXH470MEFCSN30X50 capacitor is designed to withstand high-vibration environments and meets the IEC 60068-2-6 standard for vibration testing.
  • Yes, the 450VXH470MEFCSN30X50 capacitor is designed to operate in humid environments and meets the IEC 60068-2-30 standard for humidity testing.
  • The expected lifespan of the 450VXH470MEFCSN30X50 capacitor is approximately 10,000 hours at 105°C, and 20,000 hours at 85°C, under normal operating conditions.
  • Yes, the 450VXH470MEFCSN30X50 capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
