Laird recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of 1 W/m-K or higher is suggested to improve heat transfer between the device and the heat sink.
Use a secure and reliable antenna connection method, such as a screw-on or push-on connector. Ensure the antenna is properly seated and tightened to prevent signal loss. Additionally, use a low-loss coaxial cable with a suitable impedance matching to minimize signal attenuation.
The 453-00020C module is designed to operate within a temperature range of -40°C to +85°C. However, it's recommended to operate within a narrower range of -20°C to +70°C for optimal performance and reliability.
The 453-00020C module is designed to operate in a relative humidity (RH) range of 5% to 95%. However, it's recommended to take precautions to prevent moisture ingress, such as conformal coating or potting, to ensure reliable operation in humid environments.
Laird recommends using a decoupling capacitor with a value of 10 uF or higher, placed as close as possible to the module's power pins. Additionally, a pi-filter or a common-mode choke can be used to filter out noise and ensure a clean power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
453-00020C Overview

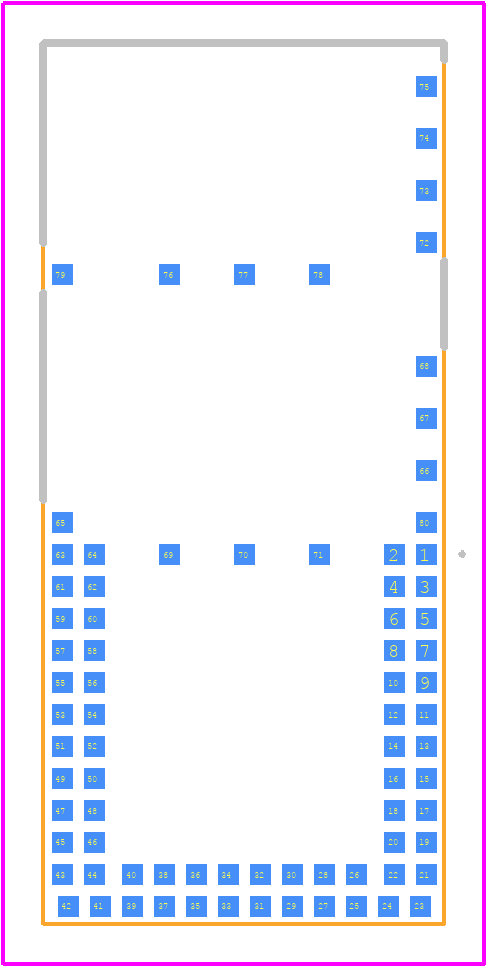

Use the download button to access the 453-00020C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 453-0,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
