45578-0001 - Molex

Description: Headers & Wire Housings SPOX BMI Vert. Heade Vert. Header 6 pin

Download 45578-0001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
45578-0001 - Molex - PCB symbol
click to zoom
PCB Footprints

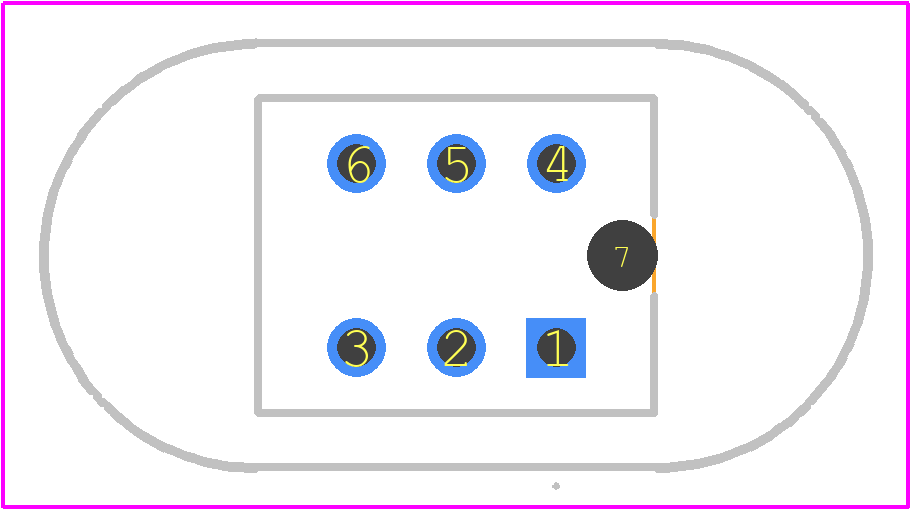

45578-0001 - Molex PCB footprint - Other - Other - 45578-0001-2
click to zoom
3D Models
45578-0001 - Molex - 3D model - Other - 45578-0001-2
click to zoom

45578-0001 Details

  • Manufacturer Part Number:

    45578-0001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

45578-0001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 45578-0001 connector is designed to withstand high-vibration environments, making it suitable for industrial and automotive applications.
  • The connector is rated for operating temperatures up to 105°C (221°F), but it's recommended to derate the current carrying capacity at higher temperatures.
  • The 45578-0001 connector has an IP67 rating, meaning it is dust-tight and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
  • Yes, the contacts are gold-plated to ensure reliable connections and prevent corrosion.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

45578-0001 Overview

Use the download button to access the 45578-0001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 45578, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
