45985-4924 - Molex

Description: EXTreme LPHPower Header, Right-Angle, 4 Power Contacts, Select Gold (Au) Plating, for 2.36mm Thick PC Board with Guide and Press-fit Plastic Pegs

Download 45985-4924 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

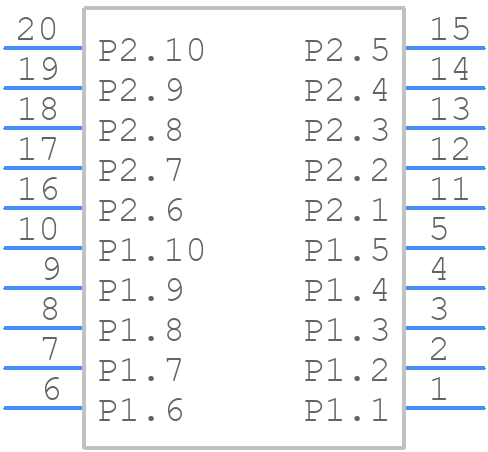

45985-4924 - Molex - PCB symbol
click to zoom
PCB Footprints

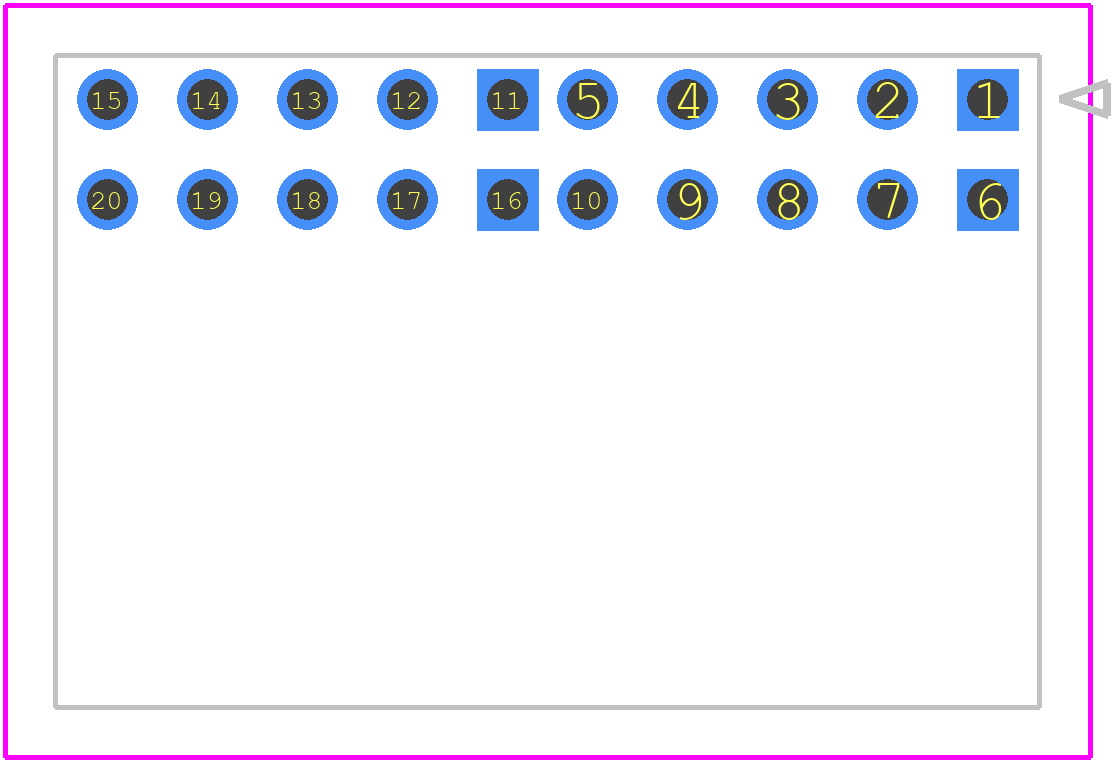

45985-4924 - Molex PCB footprint - Other - Other - 45985-4921
click to zoom
3D Models
45985-4924 - Molex - 3D model - Other - 45985-4921
click to zoom

45985-4924 Details

  • Manufacturer Part Number:

    45985-4924

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.87

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    0.295 inch

  • Body Depth:

    0.641 inch

  • Body Length:

    1.313 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    30 A

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

45985-4924 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 45985-4924 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 45985-4924 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. It's recommended to use additional sealing or conformal coating to ensure reliability in such environments.
  • The 45985-4924 connector is designed to accommodate wire sizes between 24 AWG and 16 AWG. Using wire sizes outside this range may compromise the connection reliability or damage the connector.
  • The 45985-4924 connector is designed to work with standard wire insulation materials like PVC, Teflon, or silicone. Using alternative insulation materials may affect the connector's performance or reliability. It's recommended to consult with Molex or a qualified engineer to ensure compatibility.
