460100622 - Molex

Description: Mini-Fit Plus PCB Receptacle, 4.20mm Pitch, Dual Row, Vertical, Blind Mating, 6 Circuits, with Snap-in Plastic Peg PCB Lock

Download 460100622 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
460100622 - Molex - PCB symbol
click to zoom
PCB Footprints

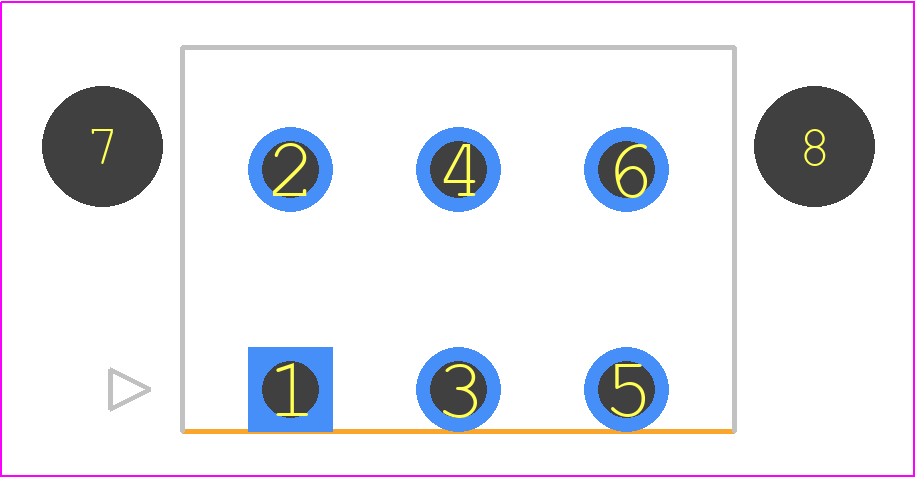

460100622 - Molex PCB footprint - Other - Other - 4601006YY
click to zoom
3D Models
460100622 - Molex - 3D model - Other - 4601006YY
click to zoom

460100622 Details

  • Manufacturer Part Number:

    460100622

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Board Mounting Option:

    HOLE .112-.124

  • Body Breadth:

    0.378 inch

  • Body Depth:

    0.446 inch

  • Body Length:

    0.54 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insertion Force-Max:

    4.8928 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • Withdrawl Force-Min:

    3.9754 N

460100622 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 46010-0622 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 46010-0622 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for harsh environmental conditions, such as direct exposure to water, high humidity, or extreme temperatures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with some limitations. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces, and ensure the connector is properly aligned and seated. It's also essential to handle the connector by the body, rather than the pins or wires, to prevent damage or bending.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

460100622 Overview

Use the download button to access the 460100622 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46010, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
