460101022 - Molex

Description: Mini-Fit Plus PCB Receptacle, 4.20mm Pitch, Dual Row, Vertical, Blind Mating, 10 Circuits, with Snap-in Plastic Peg PCB Lock

Download 460101022 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
460101022 - Molex - PCB symbol
click to zoom
PCB Footprints

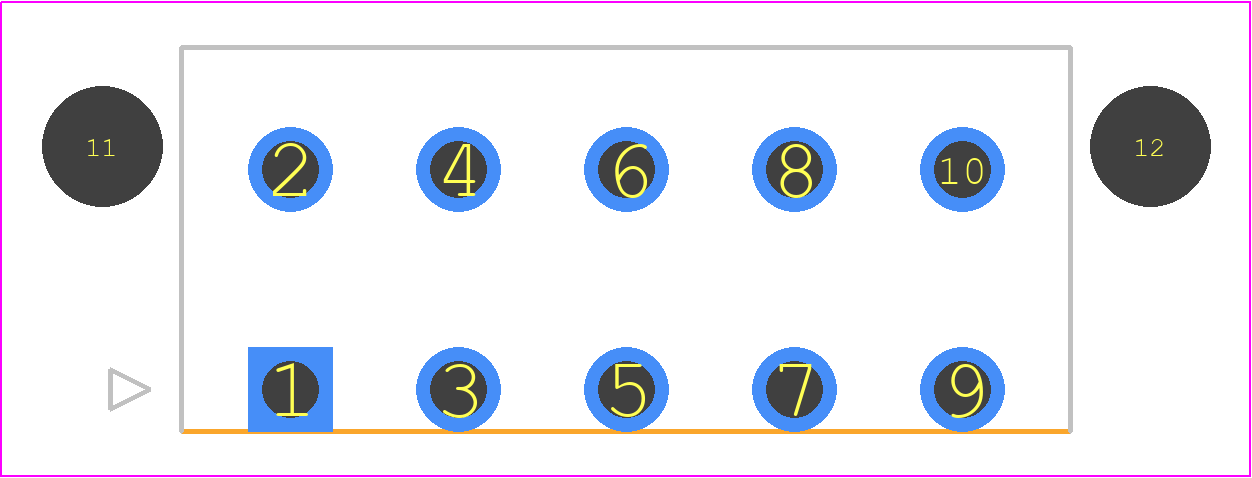

460101022 - Molex PCB footprint - Other - Other - 4601010YY
click to zoom
3D Models
460101022 - Molex - 3D model - Other - 4601010YY
click to zoom

460101022 Details

  • Manufacturer Part Number:

    460101022

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Board Mounting Option:

    HOLE .112-.124

  • Body Breadth:

    0.378 inch

  • Body Depth:

    0.446 inch

  • Body Length:

    0.87 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P10

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insertion Force-Max:

    4.8928 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • Withdrawl Force-Min:

    3.9754 N

460101022 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 46010-1022 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 46010-1022 connector has a IP20 rating, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor or harsh environment applications. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes between 20 AWG and 26 AWG. However, using wire sizes outside this range may affect the connector's performance and reliability. Consult with Molex or a qualified engineer for specific guidance.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet. Also, ensure the connector is properly aligned and seated during mating, and use a gentle, controlled motion when unmating the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

460101022 Overview

Use the download button to access the 460101022 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46010, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
