46011-0402 - Molex

Description: Mini-Fit Plus Header, 4.20mm Pitch, Dual Row, Vertical, Blind Mating, 4 Circuits, with Snap-in Plastic Peg PCB Lock, PA Polyamide Nylon 6/6, UL 94V-2, Halogen Free

Download 46011-0402 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
46011-0402 - Molex - PCB symbol
click to zoom
PCB Footprints

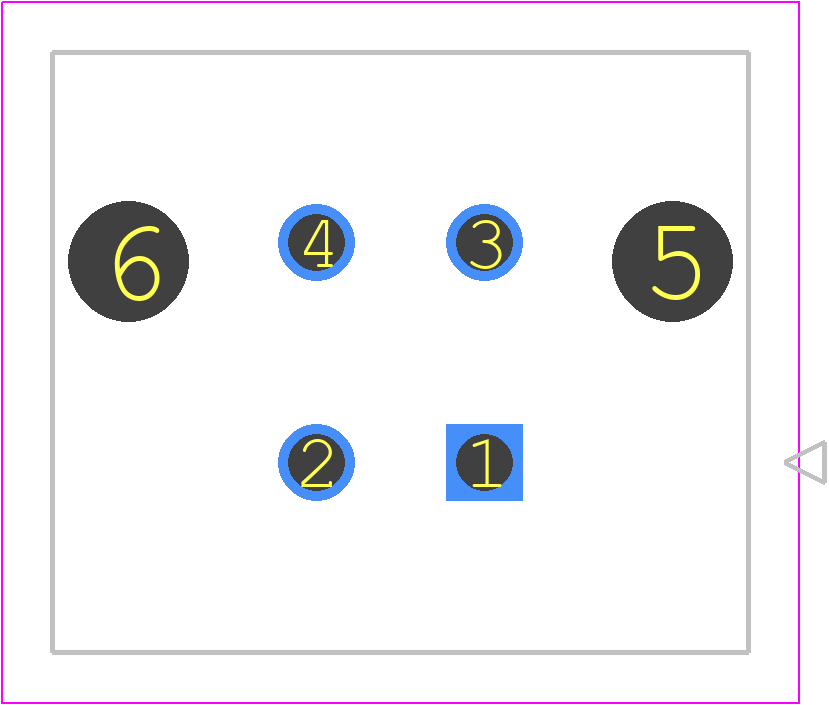

46011-0402 - Molex PCB footprint - Other - Other - 46011-04YY
click to zoom
3D Models
46011-0402 - Molex - 3D model - Other - 46011-04YY
click to zoom

46011-0402 Details

  • Manufacturer Part Number:

    46011-0402

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Board Mounting Option:

    HOLE .112-.124

  • Body Breadth:

    0.59 inch

  • Body Depth:

    0.55 inch

  • Body Length:

    0.685 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.165 inch

  • Mating Contact Row Spacing:

    0.165 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.5118 mm

  • Plating Thickness:

    100u inch

  • Rated Current (Signal):

    13 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.14 inch

  • Terminal Pitch:

    4.191 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

46011-0402 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 46011-0402 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 46011-0402 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • While the datasheet specifies 24-20 AWG wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to ensure the wire size and insulation diameter are compatible with the connector's terminal design to prevent damage or poor connections.
  • Yes, it's essential to follow Molex's recommended PCB layout guidelines to ensure proper connector mating and to prevent damage to the PCB or connector. The guidelines can be found in the datasheet or by contacting Molex technical support.
