46015-0803 - Molex

Description: Mini-Fit Plus Header, Dual Row, Vertical, 8 Circuits, with Snap-in Plastic Peg PCB Lock, without Drain Holes, PA Polyamide Nylon 6/6, UL 94V-0

Download 46015-0803 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
46015-0803 - Molex - PCB symbol
click to zoom
PCB Footprints

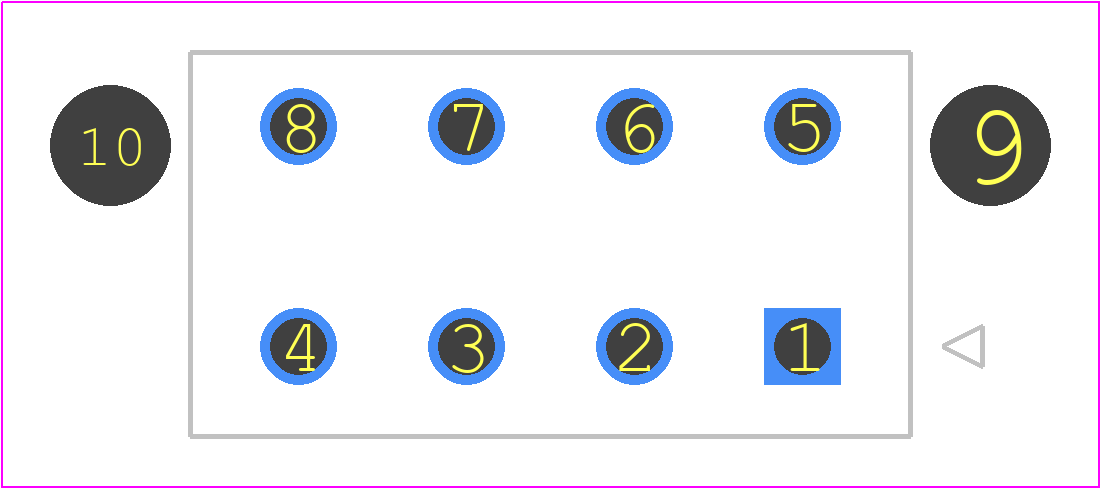

46015-0803 - Molex PCB footprint - Other - Other - 46015-08(03,07,09)
click to zoom
3D Models
46015-0803 - Molex - 3D model - Other - 46015-08(03,07,09)
click to zoom

46015-0803 Details

  • Manufacturer Part Number:

    46015-0803

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.87

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

46015-0803 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 46015-0803 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The 46015-0803 has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 46015-0803 is -40°C to 105°C (-40°F to 221°F).
  • No, the 46015-0803 is designed for use with wire gauges 18 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

46015-0803 Overview

Use the download button to access the 46015-0803 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46015, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
