46015-1203 - Molex

Description: Mini-Fit Plus Header, Dual Row, Vertical, 12 Circuits, with Snap-in Plastic Peg PCB Lock, without Drain Holes, PA Polyamide Nylon 6/6, UL 94V-0

Download 46015-1203 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
46015-1203 - Molex - PCB symbol
click to zoom
PCB Footprints

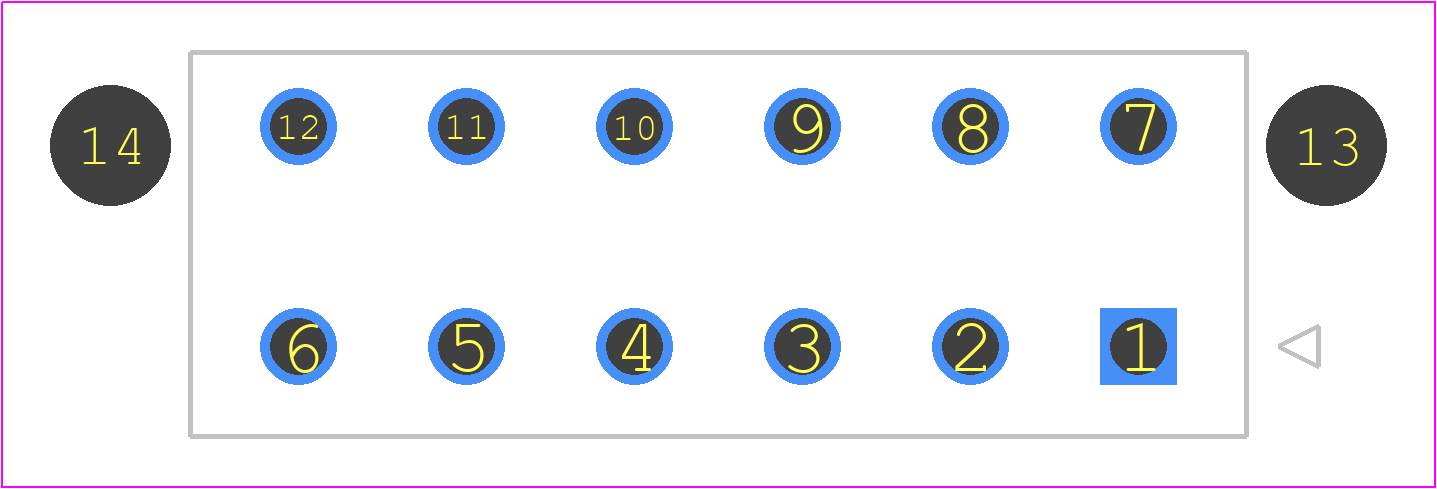

46015-1203 - Molex PCB footprint - Other - Other - 46015-12(03,07,09)
click to zoom
3D Models
46015-1203 - Molex - 3D model - Other - 46015-12(03,07,09)
click to zoom

46015-1203 Details

  • Manufacturer Part Number:

    46015-1203

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Body Breadth:

    0.38 inch

  • Body Depth:

    0.5 inch

  • Body Length:

    1.04 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

46015-1203 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 46015-1203 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the 46015-1203 connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels, making it suitable for harsh environments. However, it's essential to follow proper installation and sealing procedures to ensure reliable performance.
  • The maximum wire size that can be used with the 46015-1203 connector is 16 AWG (1.31 mm²).
  • Yes, the 46015-1203 connector is part of the Molex Mini-Fit family of connectors, which are designed to be compatible with other Mini-Fit connectors and accessories.
