464459-E footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

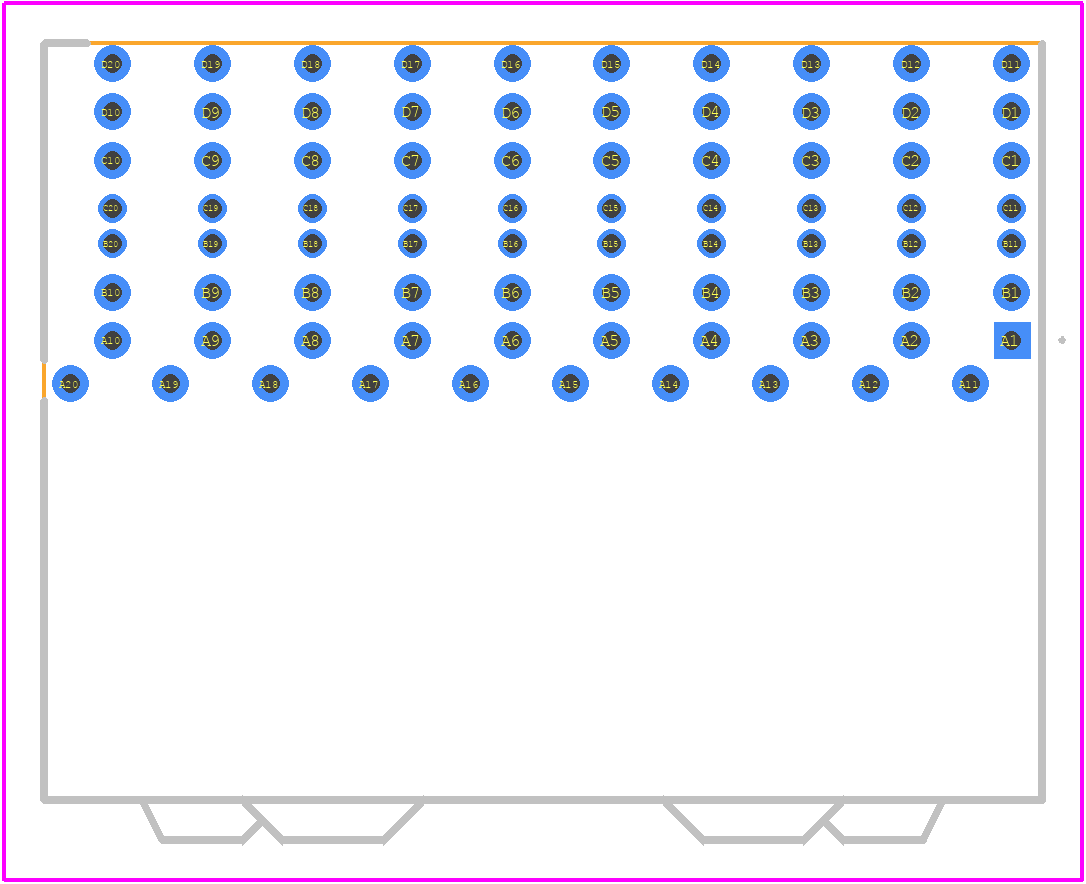

464459-E - TE Connectivity PCB footprint - Other - Other - 464459-E-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 464459-E
Part Number 464459-E
Manufacturer TE Connectivity
Pin Count 80
Part Category Connector
Package Category Other
Footprint Name Other - 464459-E-3
Released Date Sep 12, 2023
Last Modified Date Sep 30, 2024 6:54 PM UTC
Pinout / Pin List Click Here (Member Only)

464459-E Details

Manufacturer Part Number:
464459-E
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
0
Additional Feature:
20 GROUND SHIELD CONTACTS AVAILABLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
4
Option:
GENERAL PURPOSE
Terminal Pitch:
2.5 mm
Termination Type:
PRESS FIT
Total Number of Contacts:
40

464459-E Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 464459-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
The 464459-E connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and more.
Yes, the 464459-E connector is part of the TE Connectivity's AMPSEAL connector family, which offers a wide range of products that are designed to be compatible with each other. This allows for easy integration and flexibility in design.
The 464459-E connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.

Trust Checks

Community Provided

System Verified

Community Approved

464459-E Overview

Use the download button to access the 464459-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 46445, or try a keyword search, such as Headers and Edge Type Connectors
