46991-2012 - Molex

46991-2012 Details

• Manufacturer Part Number:

  46991-2012

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  37 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7.3

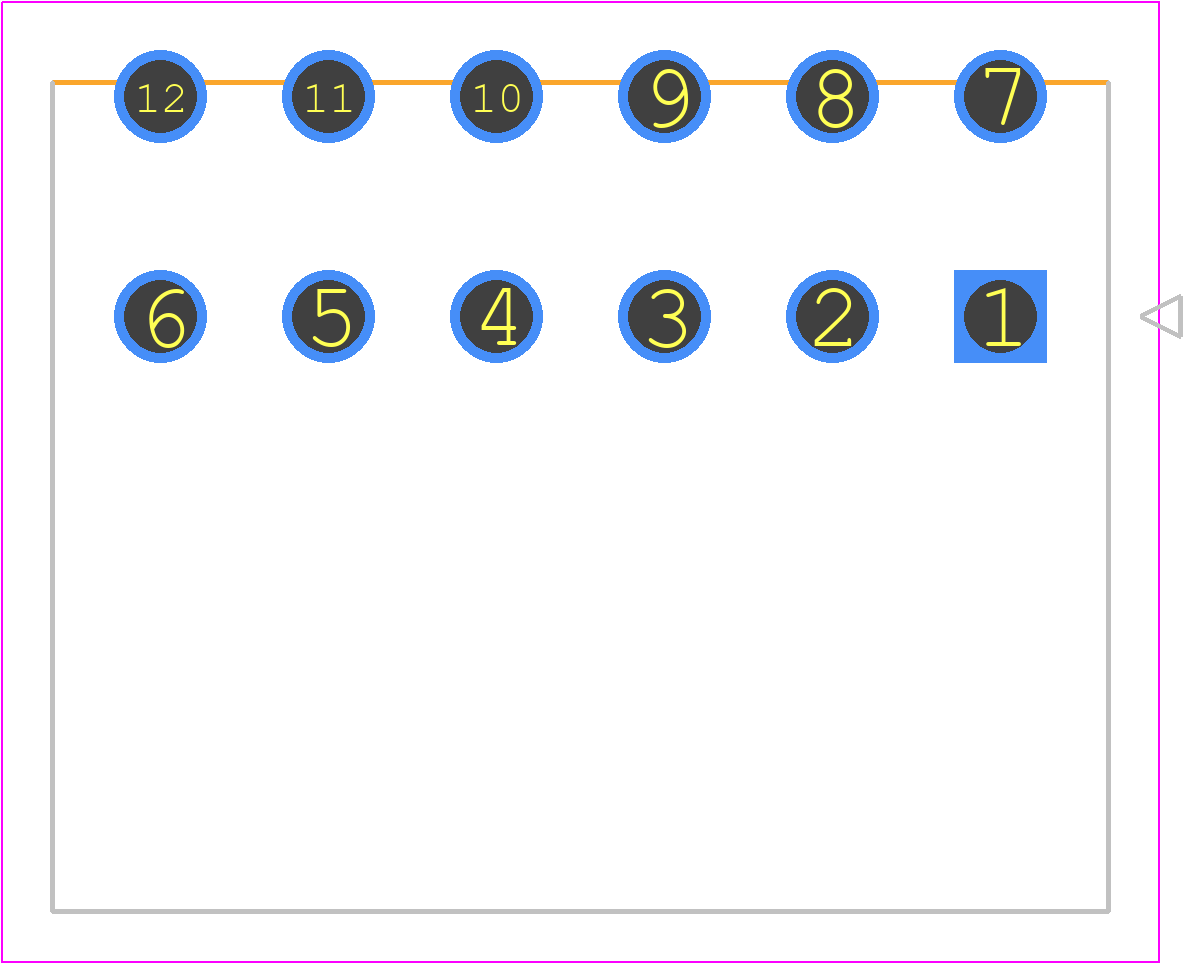

• Board Mounting Option:

  HOLE .064-.072

• Body Breadth:

  0.378 inch

• Body Depth:

  0.796 inch

• Body Length:

  1.039 inch

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Arrangement:

  S0P12

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Matte Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Plating Thickness:

  30u inch

• Termination Type:

  SOLDER

• Total Number of Contacts:

  12
