47134 - MYRRA

Description: 1 Output 3.2W Switch Mode Power Supply Transformer, 85 → 265 V ac, 85 → 370 V dc, 12V dc

Download 47134 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

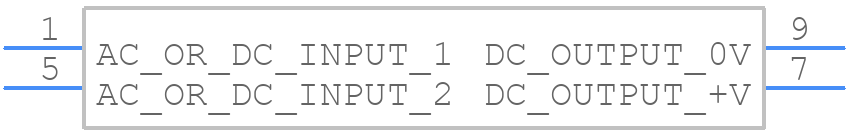

47134 - MYRRA - PCB symbol
click to zoom
PCB Footprints
47134 - MYRRA PCB footprint - Other - Other - 32.3 x 27.3 x 21.8 mm
click to zoom
3D Models
47134 - MYRRA - 3D model - Other - 32.3 x 27.3 x 21.8 mm
click to zoom

47134 Details

  • Manufacturer Part Number:

    47134

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-10/4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Myrra

  • Additional Feature:

    120 -370VDC INPUT ALSO AVAILABLE

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CUL, EN, IEC, UL, VDE

  • Efficiency (Main Output):

    70%

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    R-PDMA-P4

  • Length:

    32.3 mm

  • Line Regulation-Max:

    3%

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.27 A

  • Output Voltage-Max:

    3.36 V

  • Output Voltage-Min:

    3.04 V

  • Output Voltage-Nom:

    3.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Seated Height-Max:

    22.3 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    5 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3.2 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    3.05 s

  • Width:

    27.3 mm
