Myrra recommends a PCB layout with a solid ground plane and a thermal relief pattern around the device to ensure efficient heat dissipation. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
To ensure reliable operation in high-vibration environments, Myrra recommends using a secure mounting method, such as screwing or adhesive mounting, and ensuring that the device is properly secured to the PCB. Additionally, using a vibration-dampening material, such as a silicone adhesive, can help reduce the impact of vibrations.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Myrra recommends derating the device's power dissipation by 50% when operating above 100°C to ensure reliable operation and prevent thermal runaway.
While the 47153 is designed to operate in a variety of environments, Myrra recommends taking precautions to prevent moisture ingress, such as conformal coating or potting, to ensure reliable operation in humid or wet environments.
Myrra recommends storing the 47153 in a dry, cool environment, away from direct sunlight and moisture. Handling should be done with anti-static precautions, such as using an ESD wrist strap or mat, to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
47153 Overview

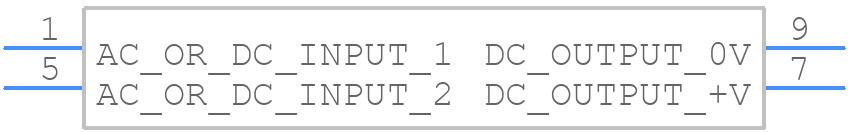

Use the download button to access the 47153 schematic symbol, PCB footprint, and 3D model.
