A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This layout helps to dissipate heat efficiently and reduces thermal resistance.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To prevent electrostatic discharge (ESD) damage, use ESD-protective packaging, handling, and storage procedures. Implementing ESD protection devices, such as TVS diodes or ESD arrays, can also help protect the device from ESD events.
Follow the recommended soldering profile, which typically includes a peak temperature of 240°C to 250°C, a dwell time of 1-2 seconds, and a cooling rate of 4°C to 6°C per second. Ensure that the soldering process is performed in a controlled environment to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
47155 Overview

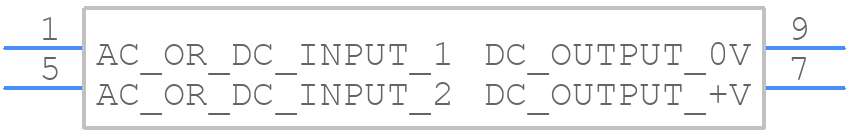

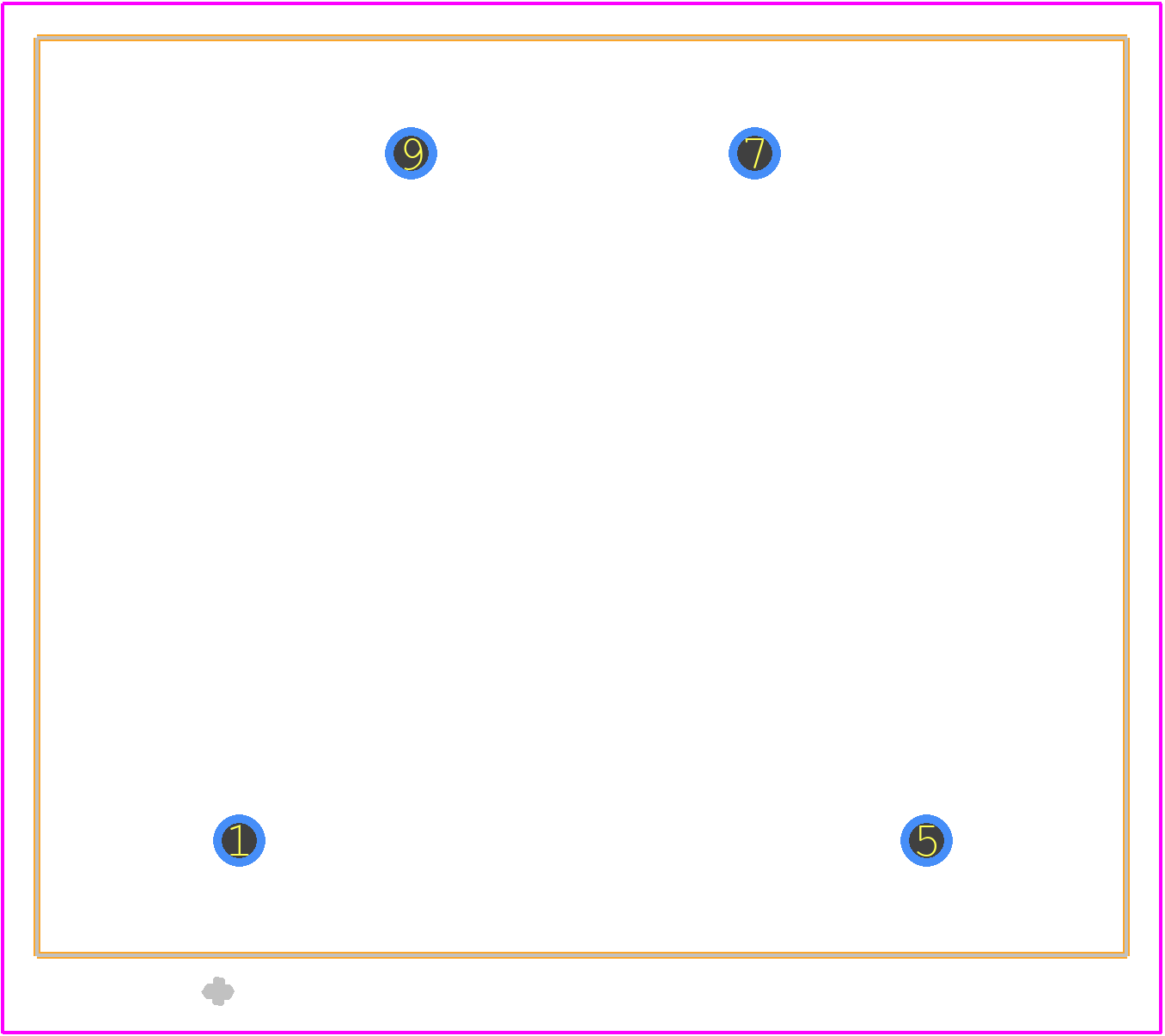

Use the download button to access the 47155 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Power Supply Modules
