47156 - MYRRA

Description: MYRRA - 47156 - POWER SUPPLY, 5W 24VDC REG

Download 47156 Model

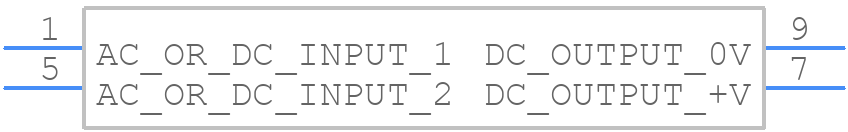

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
47156 - MYRRA PCB footprint - Other - Other - 47156-2
click to zoom
3D Models
47156 - MYRRA  - 3D model - Other - 47156-2
click to zoom

47156 Details

  • Manufacturer Part Number:

    47156

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-9/4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Myrra

  • Additional Feature:

    ALSO REQUIRE 85V TO 370V DC VOLTAGE

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    31.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    24.48 V

  • Output Voltage-Min:

    23.52 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    22.3 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    5 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    26.7 mm

47156 Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern around the device is recommended for optimal thermal performance.
  • Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal gradients and hotspots.
  • Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potentially catastrophic failure.
  • Yes, but additional testing and validation may be required to ensure the device meets the specific requirements of the application.
  • Use a systematic approach to troubleshoot, checking for proper power supply, signal integrity, and thermal management, and consult the datasheet and application notes for guidance.
