47659-1000 - Molex

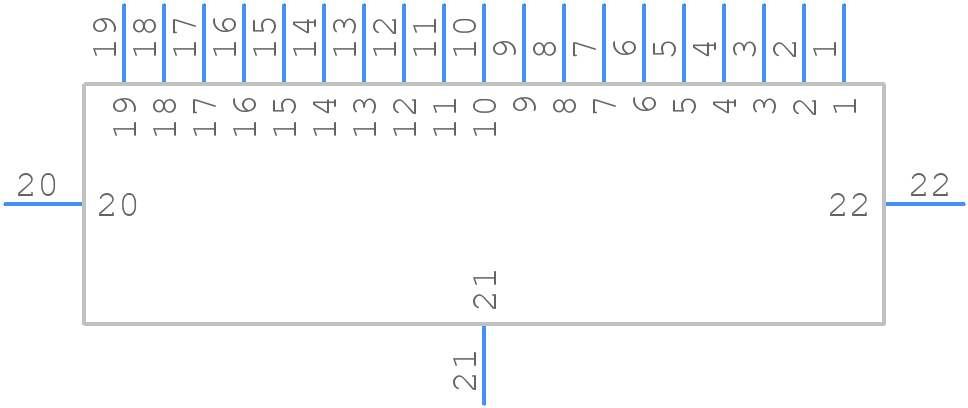

47659-1000 Details

• Manufacturer Part Number:

  47659-1000

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  0

• Additional Feature:

  POLARIZED, SHIELDED

• Body Breadth:

  0.264 inch

• Body Depth:

  0.335 inch

• Body Length:

  0.591 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  DISPLAYPORT CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  TIN BISMUTH

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Resistance:

  30 mΩ

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  300VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  10000000 Ω

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e6

• MIL Conformance:

  NO

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  FLANGELESS

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.5 A

• Shell Finish:

  NICKEL

• Shell Material:

  COPPER ALLOY

• Terminal Pitch:

  0.508 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  19
