47659-1002 - Molex

Description: HDMI, Displayport & DVI Connectors HDMI RECEPTACLE VERT SMT TYPE

Download 47659-1002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

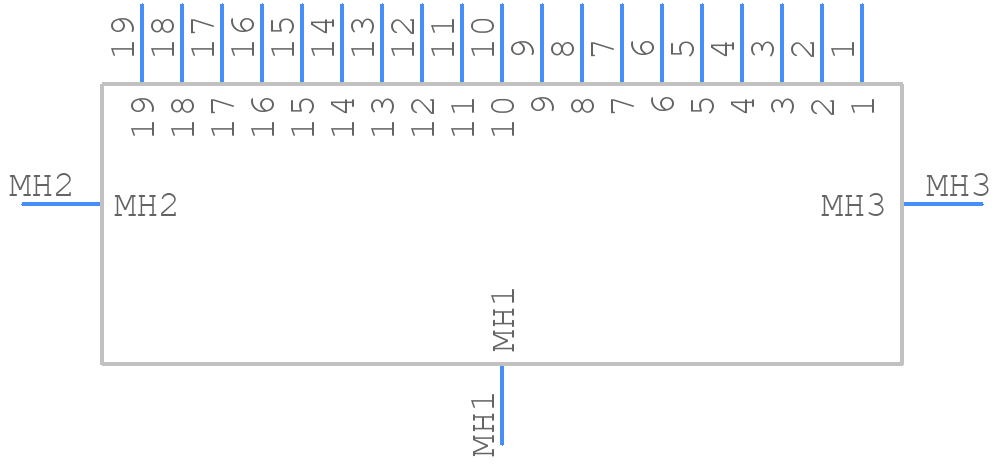

Symbol
47659-1002 - Molex - PCB symbol
click to zoom
PCB Footprints
47659-1002 - Molex PCB footprint - Other - Other - 47659-1002-1
click to zoom
3D Models
47659-1002 - Molex - 3D model - Other - 47659-1002-1
click to zoom

47659-1002 Details

  • Manufacturer Part Number:

    47659-1002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LOW HALOGEN, ROHS AND REACH COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    POLARIZED, SHIELDED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    DISPLAYPORT CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    COPPER ALLOY

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    19

47659-1002 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 47659-1002 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The connector is rated for indoor use, but it can be used outdoors if properly sealed and protected from environmental factors such as moisture and UV exposure.
  • The maximum wire size that can be used with the 47659-1002 is 18 AWG (1.0 mm²).
  • The connector is designed for use with PVC-insulated wires, but it can be used with other insulation materials such as Teflon or silicone, as long as the wire meets the specified dimensions and requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

47659-1002 Overview

Use the download button to access the 47659-1002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 47659, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
