4816P-1-201LF - Bourns

Description: RES ARRAY 8 RES 200 OHM 16SOIC

Download 4816P-1-201LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

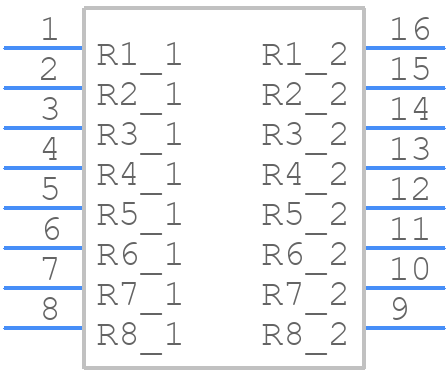

4816P-1-201LF - Bourns - PCB symbol
click to zoom
PCB Footprints
4816P-1-201LF - Bourns PCB footprint - Small Outline Packages - Small Outline Packages - 4816P
click to zoom
3D Models
4816P-1-201LF - Bourns - 3D model - Small Outline Packages - 4816P
click to zoom

4816P-1-201LF Details

  • Manufacturer Part Number:

    4816P-1-201LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOM-16

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.20

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Rectangular

  • Element Power Dissipation:

    0.16 W

  • First Element Resistance:

    200 Ω

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    2.03 mm

  • Package Length:

    5.59 mm

  • Package Style:

    SOIC

  • Package Width:

    11.18 mm

  • Packing Method:

    TR, 13 INCH

  • Rated Power Dissipation (P):

    1.28 W

  • Rated Temperature:

    70 °C

  • Resistance:

    200 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Second/Last Element Resistance:

    200 Ω

  • Size Code:

    2244

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    TIN COPPER

  • Terminal Shape:

    GULL WING

  • Tolerance:

    2%

  • Working Voltage:

    50 V
