Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to minimize thermal resistance.
To prevent damage, handle the 4816P-1-560LF by the body only, avoiding touching the leads or the ceramic element. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Follow standard ESD handling procedures.
While the datasheet specifies a maximum power rating of 560mW, this rating decreases as the operating temperature increases. Consult Bourns' derating curves or contact their technical support to determine the maximum power rating at specific temperatures.
The 4816P-1-560LF is designed to withstand moderate vibration and shock. However, for extreme environments, consider using a more ruggedized version or consulting with Bourns' technical support to determine the suitability of this component.
Verify that the 4816P-1-560LF meets the necessary safety and regulatory requirements for your application, such as UL, ENEC, or RoHS compliance. Consult Bourns' documentation and certifications, and contact their technical support if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4816P-1-560LF Overview

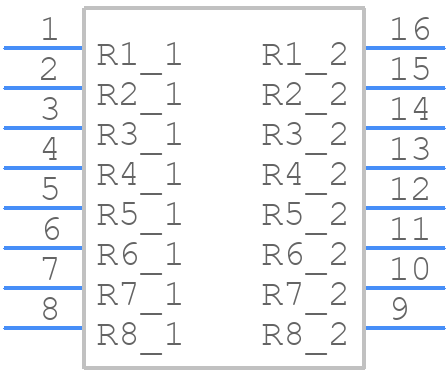

Use the download button to access the 4816P-1-560LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4816P,
or try a keyword search, such as Array/Network Resistors
