49FCT3805QGI - Renesas Electronics

Description: The FCT3805 is a 3.3 volt, non-inverting clock driver built using advanced dual metal CMOS technology. The device consists of two banks of drivers, each with a 1:5 fanout and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The FCT3805 offers low capacitance inputs with hysteresis. The FCT3805 is designed for high speed clock distribution where si

Download 49FCT3805QGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

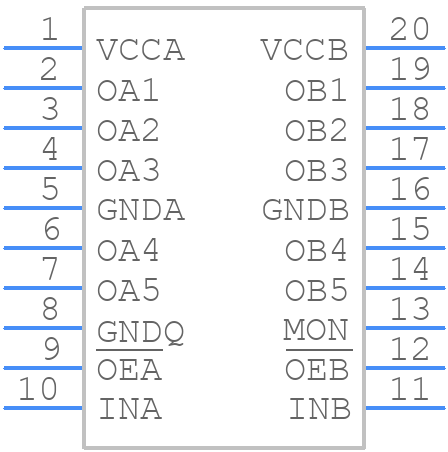

Symbol
49FCT3805QGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
49FCT3805QGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG 20_--
click to zoom
3D Models
49FCT3805QGI - Renesas Electronics - 3D model - Small Outline Packages - PCG 20_--
click to zoom

49FCT3805QGI Details

  • Manufacturer Part Number:

    49FCT3805QGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QSOP

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PCG20

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Family:

    FCT

  • Input Conditioning:

    SCHMITT TRIGGER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.66 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Number of True Outputs:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    33 mA

  • Prop. Delay@Nom-Sup:

    5.8 ns

  • Propagation Delay (tpd):

    5.8 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.6 ns

  • Seated Height-Max:

    1.7272 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

49FCT3805QGI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 49FCT3805QGI is 4.5V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed. Also, ensure that the power supply is clean and stable.
  • The maximum clock frequency supported by the 49FCT3805QGI is 100 MHz.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines in the datasheet.
  • The recommended storage temperature range for the 49FCT3805QGI is -40°C to 125°C.
