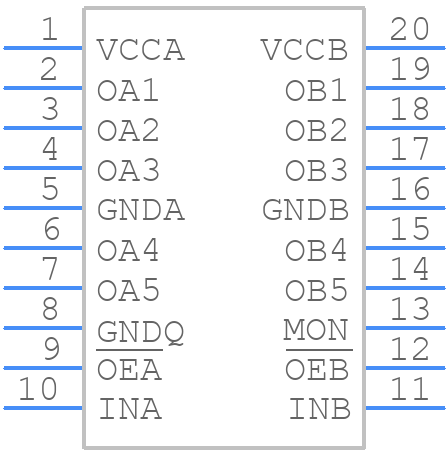

49FCT3805SOGI8 - Renesas Electronics

49FCT3805SOGI8 Details

• Manufacturer Part Number:

  49FCT3805SOGI8

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  GREEN, SOIC-20

• Pin Count:

  20

• Manufacturer Package Code:

  PSG20

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  111 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Family:

  FCT

• Input Conditioning:

  SCHMITT TRIGGER

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Max I(ol):

  0.024 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  20

• Number of True Outputs:

  5

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Propagation Delay (tpd):

  5.8 ns

• Same Edge Skew-Max (tskwd):

  0.6 ns

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
