49FCT805CTQG - Renesas Electronics

Description: This buffer/clock driver is built using advanced dual metal CMOS technology. The FCT805T is a non-inverting clock driver consisting of two banks of drivers. Each bank drives five output buffers from a standard TTL compatible input. This part has extremely low output skew, pulse skew, and package skew. The device has a "heart-beat" monitor for diagnostics and PLL driving. The monitor output is identical to all other outputs and complies with the output specifications in this document. The FCT805T is designed

Download 49FCT805CTQG Model

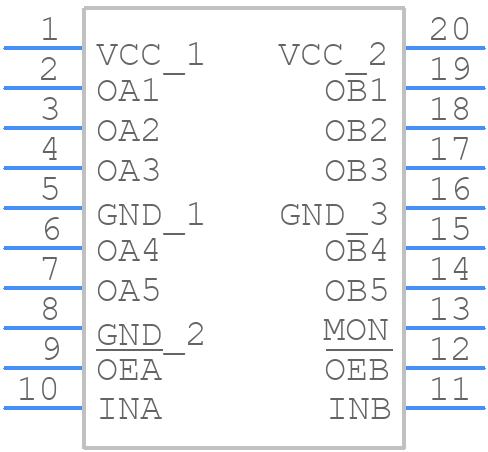

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
49FCT805CTQG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG20_
click to zoom
3D Models
49FCT805CTQG - Renesas Electronics  - 3D model - Small Outline Packages - PCG20_
click to zoom

49FCT805CTQG Details

  • Manufacturer Part Number:

    49FCT805CTQG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PCG20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

49FCT805CTQG Frequently Asked Questions (FAQs)

  • A good PCB layout for the 49FCT805CTQG should consider signal integrity, power integrity, and thermal management. Renesas provides a reference design guide that includes layout recommendations, such as using a solid ground plane, minimizing signal trace lengths, and placing decoupling capacitors close to the device.
  • The 49FCT805CTQG has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. Additionally, consider using thermal vias, heat sinks, or thermal interface materials to further reduce thermal resistance.
  • The input clock signal should be a differential signal with a frequency range of 25-166 MHz, and an amplitude of 1.4-2.5 V. The clock signal should also meet the specified jitter and skew requirements to ensure proper device operation.
  • The 49FCT805CTQG requires a specific power sequencing scheme to ensure proper device operation. The recommended power-up sequence is VCCQ, then VCC, and finally VREF. The power-down sequence should be reversed. Renesas provides a power sequencing application note that provides more detailed information.
  • For high-reliability or automotive applications, consider using the 49FCT805CTQG in a fault-tolerant design, with features such as error detection and correction, and redundant systems. Additionally, ensure that the device is operated within its recommended operating conditions, and that the PCB design meets the required standards for reliability and durability.
