49FCT805PYG - Renesas Electronics

Description: The 49FCT805 is a non-inverting buffer/clock driver built using advanced dual metal CMOS technology. Each bank consists of two banks of drivers. Each bank drives five output buffers from a standard TTL compatible input. These devices feature a "heart-beat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The 49FCT805 offers low capacitance inputs and hysteresis. Rail-to-rail output swing improves noise mar

Download 49FCT805PYG Model

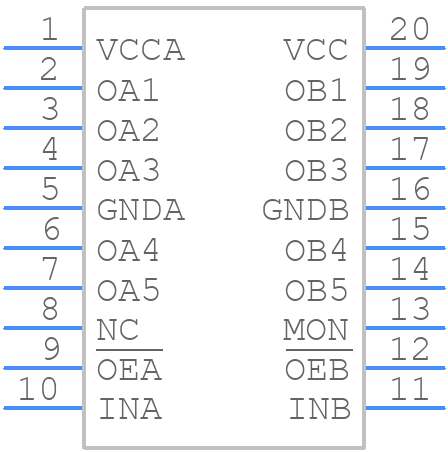

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
49FCT805PYG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 49FCT805PYG
click to zoom
3D Models
49FCT805PYG - Renesas Electronics  - 3D model - Small Outline Packages - 49FCT805PYG
click to zoom

49FCT805PYG Details

  • Manufacturer Part Number:

    49FCT805PYG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PYG20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    FCT

  • Input Conditioning:

    SCHMITT TRIGGER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.064 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Number of True Outputs:

    5

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    8.5 mA

  • Prop. Delay@Nom-Sup:

    5.6 ns

  • Propagation Delay (tpd):

    5.6 ns

  • Same Edge Skew-Max (tskwd):

    0.7 ns

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.29 mm

49FCT805PYG Frequently Asked Questions (FAQs)

  • A good PCB layout for the 49FCT805PYG should consider signal integrity, power integrity, and thermal management. Renesas provides a reference design guide that includes layout recommendations, such as using a solid ground plane, minimizing signal trace lengths, and placing decoupling capacitors close to the device.
  • The 49FCT805PYG has a thermal pad that should be connected to a solid ground plane or a thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal performance. Ensure that the PCB design allows for adequate airflow and consider using thermal simulation tools to optimize the design.
  • The input clock signal should be a differential signal with a frequency range of 25-166 MHz. The clock signal should have a duty cycle of 40-60% and a rise/fall time of less than 1 ns. Additionally, the clock signal should be terminated with a 50-ohm resistor to ensure signal integrity.
  • To ensure signal integrity, use controlled impedance traces, and maintain a consistent trace width and spacing. Use signal termination resistors and consider using differential signaling. Also, minimize vias and use signal shielding to reduce electromagnetic interference (EMI).
  • The 49FCT805PYG requires a specific power sequencing to ensure proper operation. The VCCIO and VCC core voltages should be powered up simultaneously, followed by the VREF voltage. The power-down sequence should be reversed, with VREF powered down first, followed by VCCIO and VCC core.
