49FCT806PYG - Renesas Electronics

Description: The FCT806 is an inverting buffer/clock driver built using advanced dual metal CMOS technology. Each bank consists of two banks of drivers. Each bank drives five output buffers from a standard TTL compatible input. These devices feature a "heart-beat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The FCT806 offers low capacitance inputs and hysteresis. Rail-to-rail output swing improves noise margin and

Download 49FCT806PYG Model

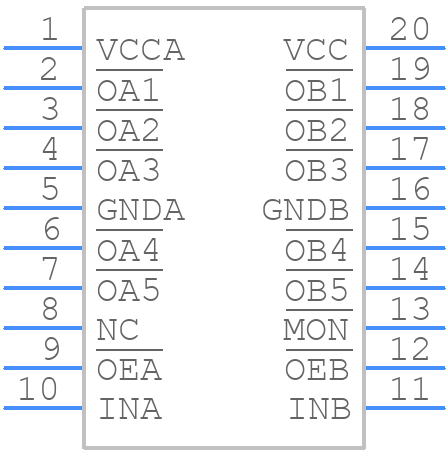

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
49FCT806PYG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PYG20
click to zoom
3D Models
49FCT806PYG - Renesas Electronics  - 3D model - Small Outline Packages - PYG20
click to zoom

49FCT806PYG Details

  • Manufacturer Part Number:

    49FCT806PYG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PYG20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

49FCT806PYG Frequently Asked Questions (FAQs)

  • A good PCB layout for the 49FCT806PYG should consider signal integrity, power integrity, and thermal management. Renesas provides a reference design guide that includes layout recommendations, such as using a solid ground plane, minimizing signal trace lengths, and placing decoupling capacitors close to the device.
  • The 49FCT806PYG has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat efficiently. Additionally, consider using thermal vias, heat sinks, or thermal interface materials to further reduce thermal resistance.
  • The input clock signal should be a differential signal with a frequency range of 25 MHz to 133 MHz, and an amplitude of 1.4 V to 2.5 V. The clock signal should also meet the specified jitter and skew requirements to ensure proper device operation.
  • The 49FCT806PYG output signals require a termination scheme to ensure signal integrity. A recommended termination scheme is to use a 50-ohm resistor in series with a 50-ohm load, and a 100-ohm differential termination resistor. The specific termination scheme may vary depending on the system requirements and PCB layout.
  • The 49FCT806PYG requires a specific power sequencing to ensure proper device operation. The recommended power-up sequence is to apply VCC first, followed by VCCQ, and then the input clock signal. The power-down sequence should be reversed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

49FCT806PYG Overview

Use the download button to access the 49FCT806PYG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 49FCT, or try a keyword search, such as Clock Drivers
