4DB-P107-05 - TE Connectivity

Description: Barrier Terminal Blocks DUAL BARRIER 5 POS

Download 4DB-P107-05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4DB-P107-05 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

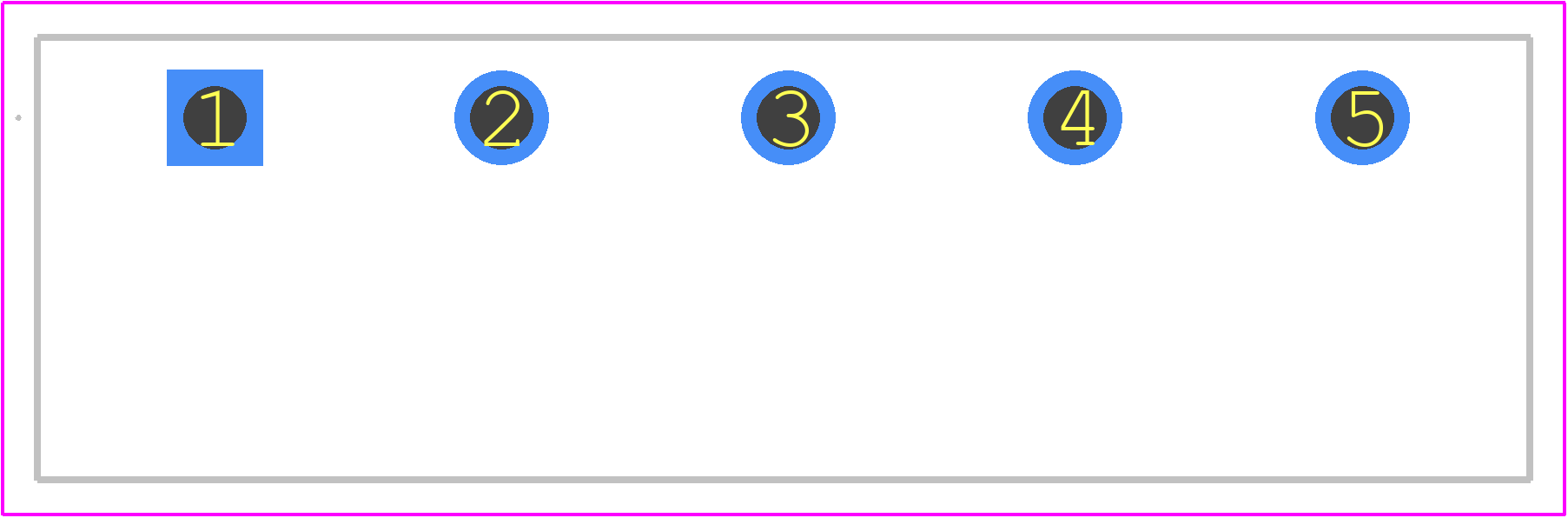

4DB-P107-05 - TE Connectivity PCB footprint - Other - Other - 4DB-P107-05
click to zoom
3D Models
4DB-P107-05 - TE Connectivity - 3D model - Other - 4DB-P107-05
click to zoom

4DB-P107-05 Details

  • Manufacturer Part Number:

    4DB-P107-05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    POLYAMIDE, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

4DB-P107-05 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in).
  • Yes, the 4DB-P107-05 is designed to withstand high-vibration environments. It meets the IEC 61373 vibration standard.
  • Yes, the 4DB-P107-05 is rated IP67, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The operating temperature range of the 4DB-P107-05 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 4DB-P107-05 can accommodate wire sizes from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4DB-P107-05 Overview

Use the download button to access the 4DB-P107-05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4DB-P, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
