4N25S-TA1 footprint, schematic symbol and 3D model by Lite-On

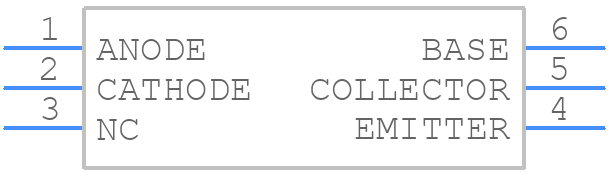

Symbol

PCB Footprints

3D Models

4N25S-TA1 Details

The recommended operating temperature range for the 4N25S-TA1 is -40°C to 100°C.
To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet, and to provide adequate heat sinking and thermal management.
The maximum allowable voltage for the 4N25S-TA1 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
The correct resistor value for the input LED of the 4N25S-TA1 can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired forward current.
The typical propagation delay time for the 4N25S-TA1 is around 2-3 microseconds, but this can vary depending on the specific application and operating conditions.

Community Provided

System Verified

Community Approved

Use the download button to access the 4N25S-TA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 4N25S, or try a keyword search, such as Optocoupler
