4N25SR2M - onsemi

Description: Minimum Current Transfer Ratio at IF = 10 mA, VCE = 10 V: • 10% for 4N27M and 4N28M • 20% for 4N25M and 4N26M • 100% for 4N35M, 4N36M and 4N37M; Safety and Regulatory Approvals: • UL1577, 4,170 VACRMS for 1 Minute • DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage

Download 4N25SR2M Model

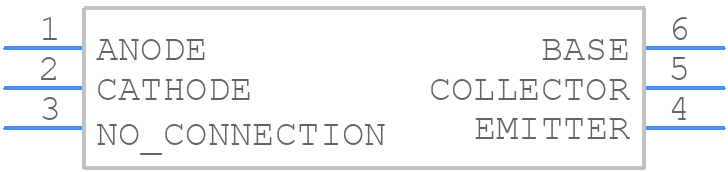

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
4N25SR2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SMT 6-Pin (Lead Bend)
click to zoom
3D Models
4N25SR2M - onsemi  - 3D model - Small Outline Packages - SMT 6-Pin (Lead Bend)
click to zoom

4N25SR2M Details

  • Manufacturer Part Number:

    4N25SR2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N25SR2M Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage can cause damage to the internal LED.
  • To ensure reliable operation in high-temperature environments, it's essential to derate the current through the LED and ensure good thermal management, such as using a heat sink or providing adequate airflow.
  • The recommended input current range for optimal performance is between 1mA and 10mA. Operating outside this range may affect the optocoupler's performance and reliability.
  • While the 4N25SR2M can be used for high-frequency applications, its bandwidth is limited to around 10kHz. For higher-frequency applications, consider using a faster optocoupler or a different isolation technology.
  • To minimize EMI, use proper PCB layout techniques, such as separating the input and output circuits, using a ground plane, and minimizing loop areas. Additionally, consider using shielding or EMI filters if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4N25SR2M Overview

Use the download button to access the 4N25SR2M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4N25S, or try a keyword search, such as Optocoupler
