Part Image

4N25VM - onsemi

Description: Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-DIP ,1.18V ,60 mA ,-40°C ~ 100°C

Download 4N25VM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

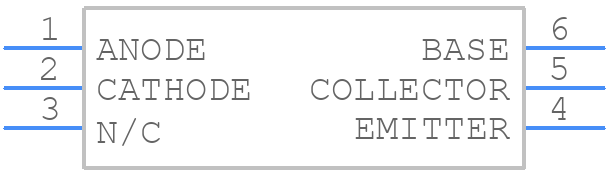

Symbol
4N25VM - onsemi - PCB symbol
click to zoom
PCB Footprints
4N25VM - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O_2026
click to zoom
3D Models
4N25VM - onsemi - 3D model - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O_2026
click to zoom

4N25VM Details

  • Manufacturer Part Number:

    4N25VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N25VM Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V. Exceeding this voltage can cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
  • The recommended input current for the 4N25VM is 10mA to 20mA. Operating the device outside of this range may affect its performance and reliability.
  • While the 4N25VM can be used for high-frequency applications, its bandwidth is limited to around 10kHz. For higher-frequency applications, consider using a faster optocoupler like the FODM8071 or the TLP2361.
  • To protect the 4N25VM from EOS, use proper circuit protection devices such as TVS diodes or zener diodes to clamp voltage transients and prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4N25VM Overview

Use the download button to access the 4N25VM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4N25V, or try a keyword search, such as Optocoupler
