Description:Minimum Current Transfer Ratio at IF=10mA, Vce=10V - 10% for 4N27M and 4N28M - 20% for 4N25M and 4N26M - 100% for 4N35M, 4N36M and 4N37M; Safety and Regulatory Approvals: – UL1577, 4,170 VACRMS for 1 Minute – DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage
The maximum allowable voltage that can be applied to the input pins is 5V. Exceeding this voltage can cause damage to the device.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
For optimal performance and to minimize electromagnetic interference (EMI), it is recommended to follow the layout and spacing guidelines provided in the datasheet, including keeping the input and output circuits separate and using a ground plane to reduce noise.
While the 4N27M is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz. However, the device's performance may degrade at higher frequencies, and additional filtering or shielding may be required to minimize electromagnetic interference (EMI).
To troubleshoot issues with the 4N27M, check the input voltage and current, ensure proper PCB layout and spacing, and verify that the device is operated within its recommended specifications. If issues persist, consult the datasheet and application notes or contact onsemi support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4N27M Overview

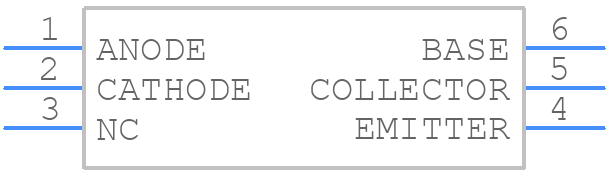

Use the download button to access the 4N27M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Optocoupler
