4N28M - onsemi

Description: Minimum Current Transfer Ratio at IF = 10 mA, VCE = 10 V: – 10% for 4N27M and 4N28M – 20% for 4N25M and 4N26M – 100% for 4N35M, 4N36M and 4N37M; Safety and Regulatory Approvals: – UL1577, 4,170 VACRMS for 1 Minute – DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage

Download 4N28M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

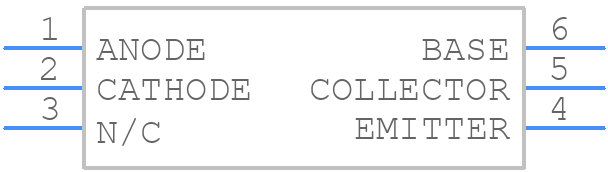

Symbol
4N28M - onsemi - PCB symbol
click to zoom
PCB Footprints
4N28M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 4N35M-1
click to zoom
3D Models
4N28M - onsemi - 3D model - Dual-In-Line Packages - 4N35M-1
click to zoom

4N28M Details

  • Manufacturer Part Number:

    4N28M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    10%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N28M Frequently Asked Questions (FAQs)

  • The recommended lead forming for the 4N28M is to bend the leads at a 1.5 mm radius, and to avoid bending the leads more than 90 degrees to prevent damage to the internal wires.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder to the leads. Avoid applying excessive heat or pressure, which can damage the internal components.
  • The maximum allowable voltage for the 4N28M is 80 V, which is the maximum voltage rating for the device. Exceeding this voltage can cause damage to the internal components.
  • To handle ESD protection for the 4N28M, use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment. Avoid touching the leads or handling the device in a way that can generate static electricity.
  • The recommended storage temperature for the 4N28M is -40°C to 100°C. Storing the device outside of this temperature range can affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4N28M Overview

Use the download button to access the 4N28M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Optocoupler
