4N32M - onsemi

Description: Meets or Exceeds All JEDEC Registered Specifications; Safety and Regulatory Approvals:; UL1577, 4,170 VACRMS for 1 Minute; DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage"; "High Sensitivity to Low Input Drive Current

Download 4N32M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

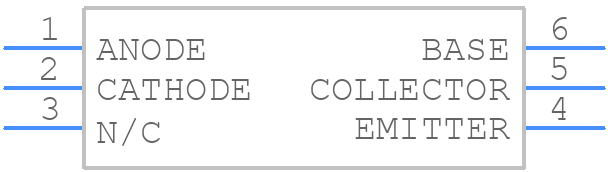

Symbol
4N32M - onsemi - PCB symbol
click to zoom
PCB Footprints
4N32M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 4N32M++
click to zoom
3D Models
4N32M - onsemi - 3D model - Dual-In-Line Packages - 4N32M++
click to zoom

4N32M Details

  • Manufacturer Part Number:

    4N32M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.25 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N32M Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, exceeding which may cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The recommended layout and spacing for the 4N32M on a PCB is to keep the device at least 1.5 mm away from other components and to use a ground plane to minimize electromagnetic interference.
  • The 4N32M is not suitable for high-frequency applications above 1 MHz due to its limited bandwidth. For high-frequency applications, consider using a faster optocoupler like the 6N137 or 6N139.
  • To handle ESD protection when working with the 4N32M, use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or container when not in use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4N32M Overview

Use the download button to access the 4N32M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Optocoupler
